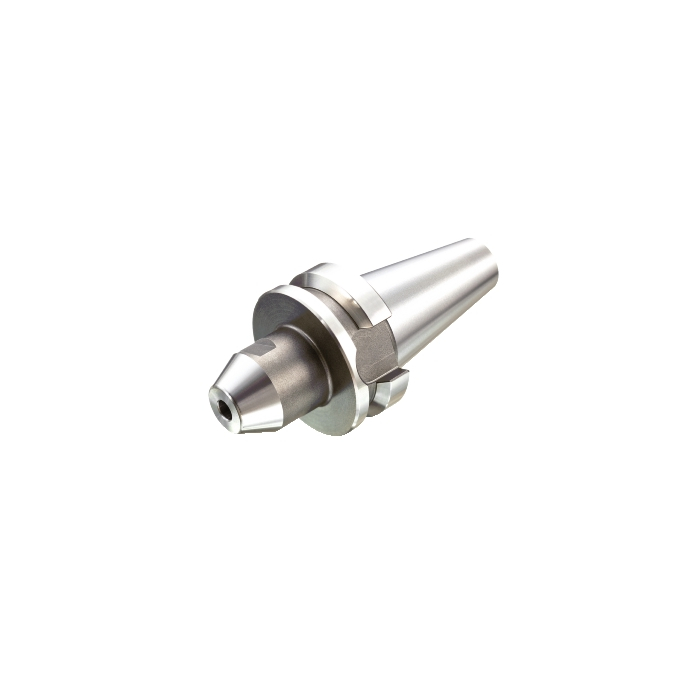

Sandvik Coromant A2B20-40 12 100 MAS-BT 403 to Weldon adaptor

Name: Sandvik Coromant A2B20-40 12 100 MAS-BT 403 to Weldon adaptor
SKU: 5721923
Price: 1620.35 ZAR
Availability: OutOfStock

R 1 620,35 inc. vat

Out of stock

SKU

5721923

MAS-BT 403 to Weldon adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

MAS-BT 403 to Weldon adaptor

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	44.45mm
DCON - Connection Diameter	12mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
BD - Body Diameter	63mm
LB - Body Length	100mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	12Nm
RPMX - Rotational Speed Maximum	180001/min
WT - Weight Of Item	1.664kg
OAL - Overall Length	168.4mm
OHX - Maximum Overhang	100mm
LSC - Clamping Length	48mm
ORDCODE	A2B20-40 12 100
ADINTMS - Adaptive Interface Machine Direction	M_SKG57_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLW_G1200_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
CRKS - Connection Retention Knob Thread Size	M16
BMC - Body Material Code	1
CHANGEDATE	2022-09-02 06:31:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	MAS403-BT
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
