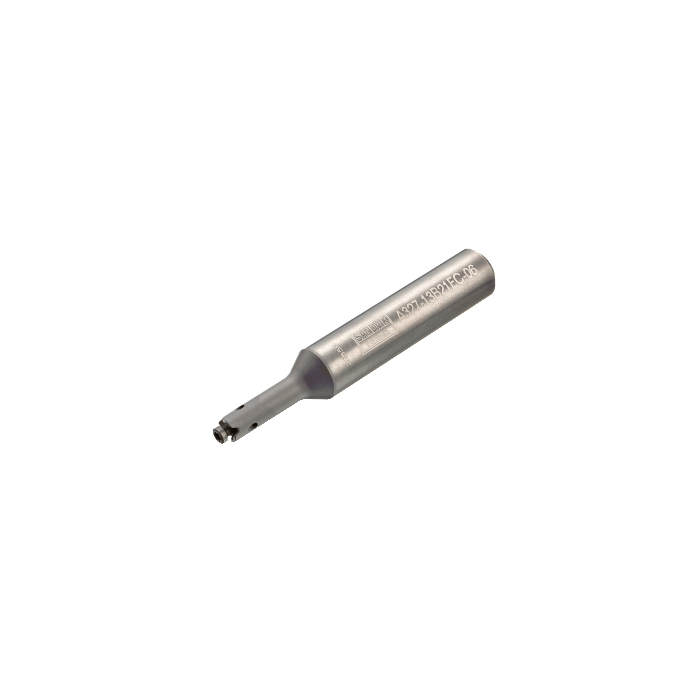

Sandvik Coromant A327-16B32EC-09 Weldon to CoroMill™ 327 adaptor

Name: Sandvik Coromant A327-16B32EC-09 Weldon to CoroMill™ 327 adaptor
SKU: 5722531
Price: 5666.05 ZAR
Availability: InStock

R 5 666,05 inc. vat

In stock

SKU

5722531

Weldon to CoroMill® 327 adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Weldon to CoroMill® 327 adaptor

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	9mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	94.25mm
BD - Body Diameter	9mm
LB - Body Length	32.75mm
BHTA - Body Half Taper Angle	30deg
TQ - Torque	4.3Nm
RPMX - Rotational Speed Maximum	400001/min
WT - Weight Of Item	0.212kg
OAL - Overall Length	94.25mm
OHX - Maximum Overhang	41.55mm
LSC - Clamping Length	52.7mm
OHN - Minimum Overhang	32.75mm
H - Shank Height	14.22mm
MHD - Mounting Hole Distance	24.209375mm
ORDCODE	A327-16B32EC-09
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_R6250_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CM3271_C0090_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	2
CHANGEDATE	2022-02-09 13:52:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	DIN6535
TCDCON - Connection Diameter Tolerance	h6
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
