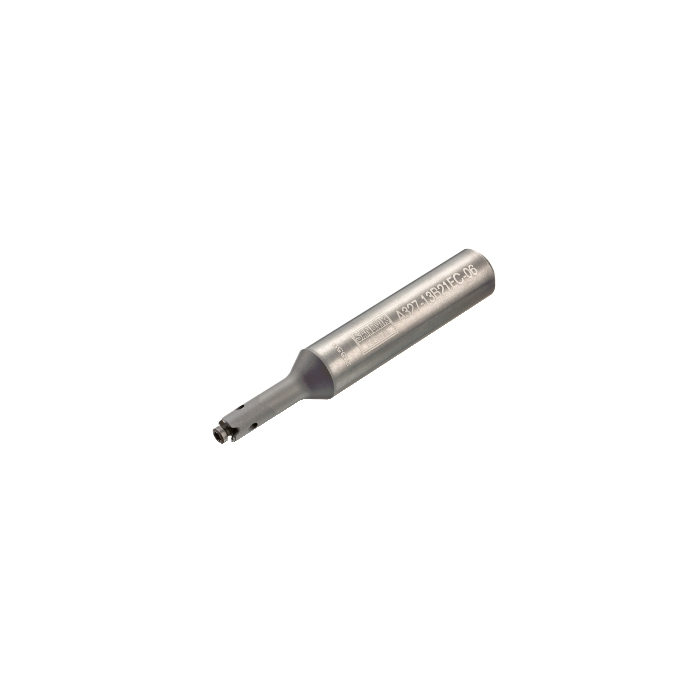

Sandvik Coromant A327-16B60EC-12 Weldon to CoroMill™ 327 adaptor Previous Sandvik Coromant A327-16B60EC-12 Weldon to CoroMill™ 327 adaptor

Sandvik Coromant A327-16B60EC-14 Weldon to CoroMill™ 327 adaptor

R 7 021,90 inc. vat
In stock
SKU
5722553
Weldon to CoroMill® 327 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Weldon to CoroMill® 327 adaptor
More Information
CP - Coolant Pressure 2000000Pa
DCON - Connection Diameter 14.3mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 123.5mm
BD - Body Diameter 14.3mm
LB - Body Length 55.394mm
BHTA - Body Half Taper Angle 30deg
TQ - Torque 6.5Nm
RPMX - Rotational Speed Maximum 350001/min
WT - Weight Of Item 0.36kg
OAL - Overall Length 123.5mm
OHX - Maximum Overhang 70.797mm
LSC - Clamping Length 52.7mm
OHN - Minimum Overhang 55.394mm
H - Shank Height 14.22mm
MHD - Mounting Hole Distance 24.209375mm
ORDCODE A327-16B60EC-14
ADINTMS - Adaptive Interface Machine Direction M_CYLW_R6250_1
ADINTWS - Adaptive Interface Workpiece Direction W_CM3271_C0140_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 2
CHANGEDATE 2022-02-09 13:52:00.000
STDLET - Standard Letter HB
STDNO - Standard Number DIN6535
TCDCON - Connection Diameter Tolerance h6
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
