Sandvik Coromant A32T-DTFNL 16 T-Max™ P boring bar for turning

Name: Sandvik Coromant A32T-DTFNL 16 T-Max™ P boring bar for turning
SKU: 5722414
Price: 4961.10 ZAR
Availability: InStock

R 4 961,10 inc. vat

In stock

SKU

5722414

T-Max® P boring bar for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

T-Max® P boring bar for turning

More Information
CP - Coolant Pressure	4000000Pa
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	300mm
BD - Body Diameter	32mm
TQ - Torque	1.7Nm
WT - Weight Of Item	1.592kg
OAL - Overall Length	300mm
OHX - Maximum Overhang	128mm
LSC - Clamping Length	263.8mm
KAPR - Tool Cutting Edge Angle	91deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	40mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
OHN - Minimum Overhang	48mm
WF - Functional Width	22mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-6deg
LAMS - Inclination Angle	-10deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	9.525mm
RE - Corner Radius	0.79375mm
Insert Thickness	4.7625mm
H - Shank Height	30mm
ORDCODE	A32T-DTFNL 16
ADINTMS - Adaptive Interface Machine Direction	M_CYLF3_G3200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-13 14:45:00.000
MTP - Clamping Type Code	D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_TN1604_1
Hand	L

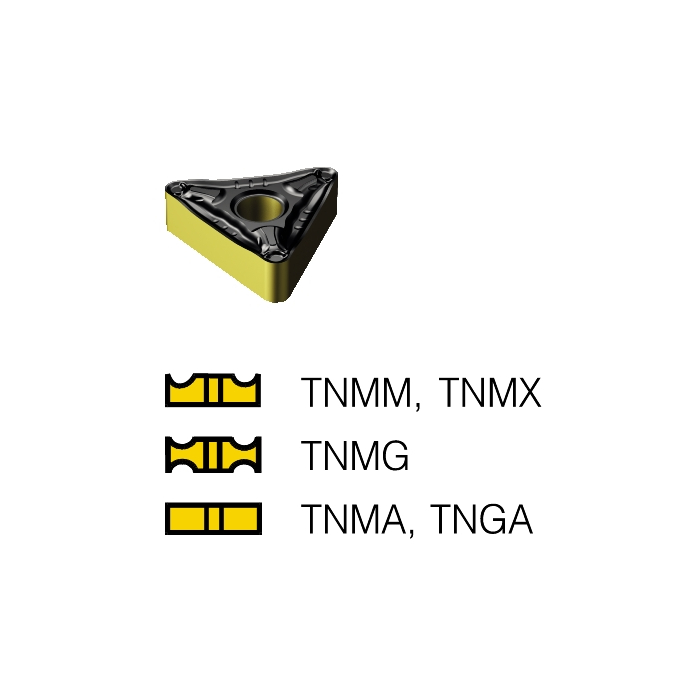

MIID - Master Insert Identification	TNMG 16 04 08
IFS - Insert Mounting Style Code	2
SC - Insert Shape Code	T
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
