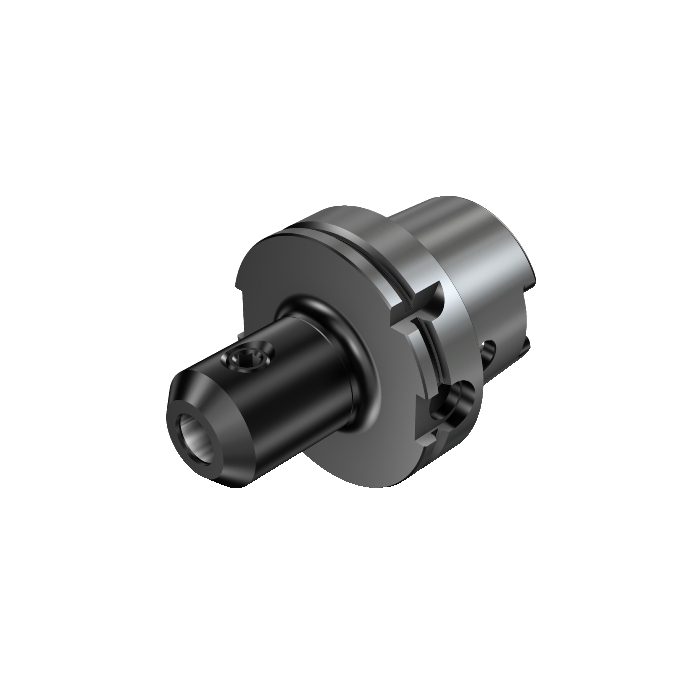

Sandvik Coromant A392.41020-63 25 105B HSK to Weldon adaptor Previous Sandvik Coromant A392.41020-63 25 105B HSK to Weldon adaptor

Sandvik Coromant A392.41020-63 31 105B HSK to Weldon adaptor

R 3 941,05 inc. vat
In stock
SKU
5722632
HSK to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to Weldon adaptor
More Information
CP - Coolant Pressure 2000000Pa
DFC - Functional Diameter 48.01mm
DCON - Connection Diameter 31.75mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 105.0036mm
BD - Body Diameter 63mm
LB - Body Length 105mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 45Nm
RPMX - Rotational Speed Maximum 205001/min
WT - Weight Of Item 2.009kg
OAL - Overall Length 137.004mm
OHX - Maximum Overhang 105.0036mm
LSC - Clamping Length 64mm
ORDCODE A392.41020-63 31 105B
ADINTMS - Adaptive Interface Machine Direction M_HSK01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLW_S1250_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2021-12-21 00:59:00.000
STDLET - Standard Letter A
STDNO - Standard Number DIN69893-1
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
