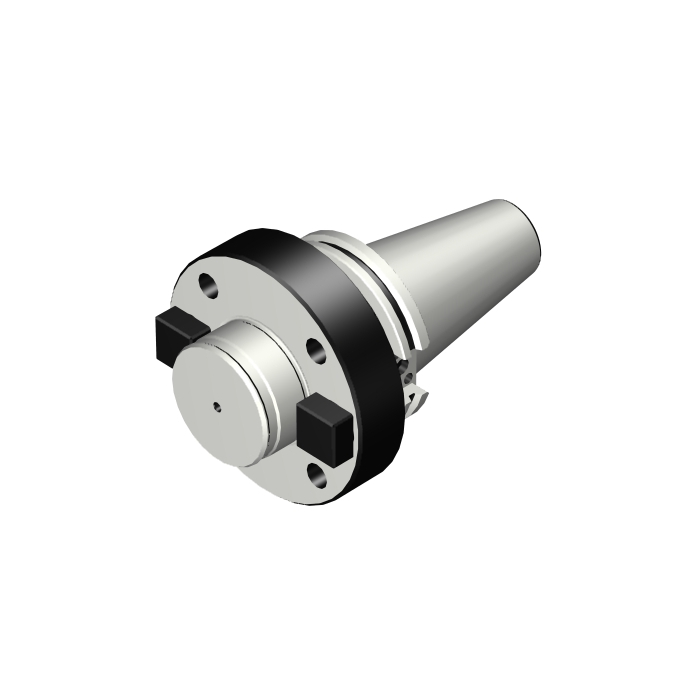

Sandvik Coromant A392.54505-5063065 BIG-PLUS CAT-V to arbor adaptor

Name: Sandvik Coromant A392.54505-5063065 BIG-PLUS CAT-V to arbor adaptor
SKU: 7079779
Price: 9742.80 ZAR
Availability: OutOfStock

R 9 742,80 inc. vat

Out of stock

SKU

7079779

BIG-PLUS CAT-V to arbor adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

BIG-PLUS CAT-V to arbor adaptor

More Information
DFC - Functional Diameter	69.85mm
DCON - Connection Diameter	63.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	65mm
BD - Body Diameter	130mm
LB - Body Length	65mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	120Nm
RPMX - Rotational Speed Maximum	120001/min
WT - Weight Of Item	7.078kg
OAL - Overall Length	195.6mm
OHX - Maximum Overhang	65mm
DBC - Diameter Bolt Circle	101.6mm
ORDCODE	A392.54505-5063065
ADINTMS - Adaptive Interface Machine Direction	M_SKG30BP_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_FDA1C4_S2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
CRKS - Connection Retention Knob Thread Size	1"-8
BMC - Body Material Code	1
CHANGEDATE	2022-06-20 08:21:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ASME B5.50 (BIG-PLUS)
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
