Sandvik Coromant A40T-DWLNL 08 T-Max™ P boring bar for turning

R 5 533,80 inc. vat
In stock
SKU
5723965
T-Max® P boring bar for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P boring bar for turning
More Information
CP - Coolant Pressure 4000000Pa
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 300mm
BD - Body Diameter 40mm
TQ - Torque 3.9Nm
WT - Weight Of Item 2.476kg
OAL - Overall Length 300mm
OHX - Maximum Overhang 160mm
LSC - Clamping Length 260mm
KAPR - Tool Cutting Edge Angle 95deg
RMPX - Maximum Ramping Angle 0deg
DMIN - Minimum Bore Diameter 50mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
OHN - Minimum Overhang 60mm
WF - Functional Width 27mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle -6deg
LAMS - Inclination Angle -13deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.79375mm
Insert Thickness 4.7625mm
H - Shank Height 37mm
ORDCODE A40T-DWLNL 08
ADINTMS - Adaptive Interface Machine Direction M_CYLF3_G4000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:05:00.000
MTP - Clamping Type Code D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_WN0804_1
Hand L

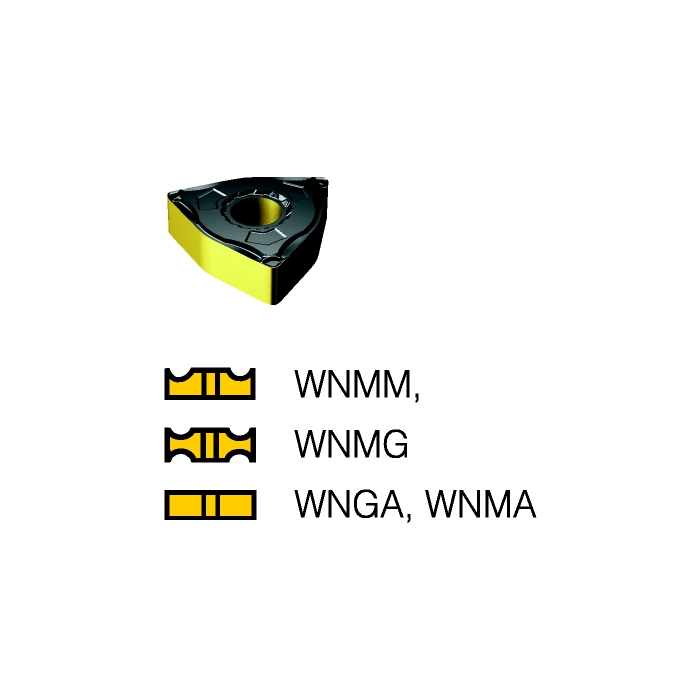

MIID - Master Insert Identification WNMG 08 04 08
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code W
SSC - Insert Seat Size Code 08
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
