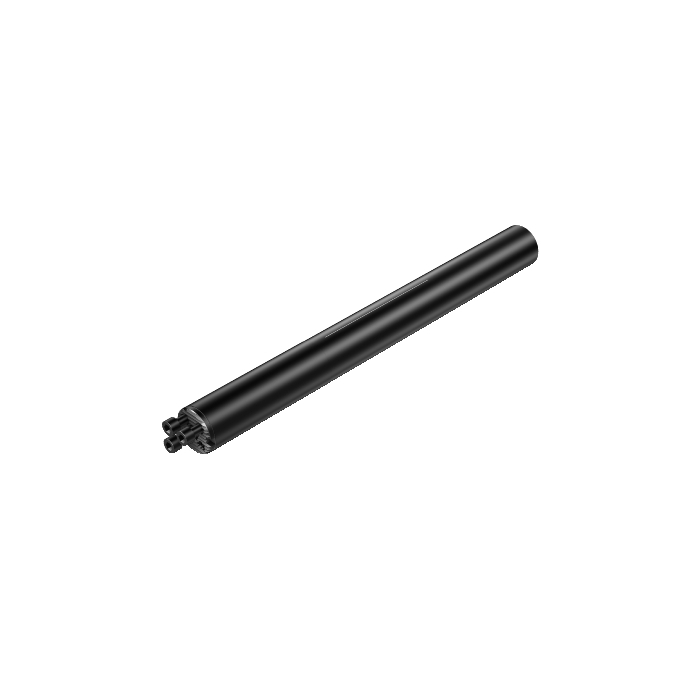

Sandvik Coromant A570-3C D10 06-16 Cylindrical shank to CoroTurn™ SL damped adaptor

R 21 490,05 inc. vat
In stock
SKU
5722905
Cylindrical shank to CoroTurn® SL damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to CoroTurn® SL damped adaptor
More Information
CP - Coolant Pressure 7000000Pa
DCON - Connection Diameter 16mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 156mm
BD - Body Diameter 16mm
LB - Body Length 156mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 2Nm
WT - Weight Of Item 0.24kg
OAL - Overall Length 156mm
OHX - Maximum Overhang 91mm
LSC - Clamping Length 100mm
BAWS - Workpiece Side Body Angle 0deg
OHN - Minimum Overhang 55mm
WF - Functional Width 0mm
HF - Functional Height 0mm
LPR - Protruding Length 156mm
ORDCODE A570-3C D10 06-16
ADINTMS - Adaptive Interface Machine Direction M_CYLR_R6250_1
ADINTWS - Adaptive Interface Workpiece Direction W_SLHDSS_C0160_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-05-23 19:18:00.000
Hand N
CNT - Coolant Entry Thread Size G 1/8-28
DPC - Damping Property True
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
LOCAP - Location Aid Property True
