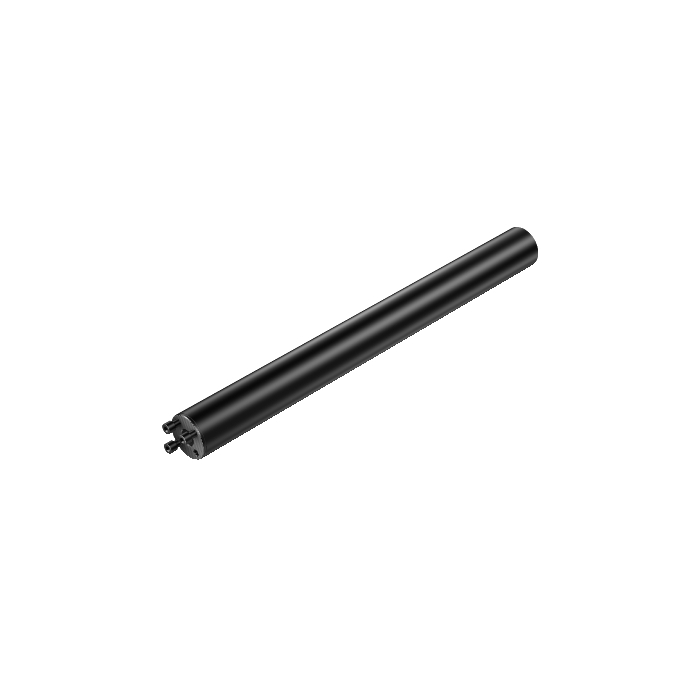

Sandvik Coromant A570-3C D32 26-50 Cylindrical shank to CoroTurn™ SL damped adaptor
R 57 802,45
inc. vat
Out of stock
SKU
5722993
Cylindrical shank to CoroTurn® SL damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to CoroTurn® SL damped adaptor
| CP - Coolant Pressure | 7000000Pa |
|---|---|
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 671mm |
| BD - Body Diameter | 50.8mm |
| LB - Body Length | 671.32mm |
| BHTA - Body Half Taper Angle | 0deg |
| WT - Weight Of Item | 10.21kg |
| OAL - Overall Length | 671mm |
| OHX - Maximum Overhang | 468mm |
| LSC - Clamping Length | 471mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| OHN - Minimum Overhang | 199.9mm |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 671mm |
| ORDCODE | A570-3C D32 26-50 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_S2000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SLHDSS_C0500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-24 15:05:00.000 |
| Hand | N |
| CNT - Coolant Entry Thread Size | G 1/2-14 |
| DPC - Damping Property | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
