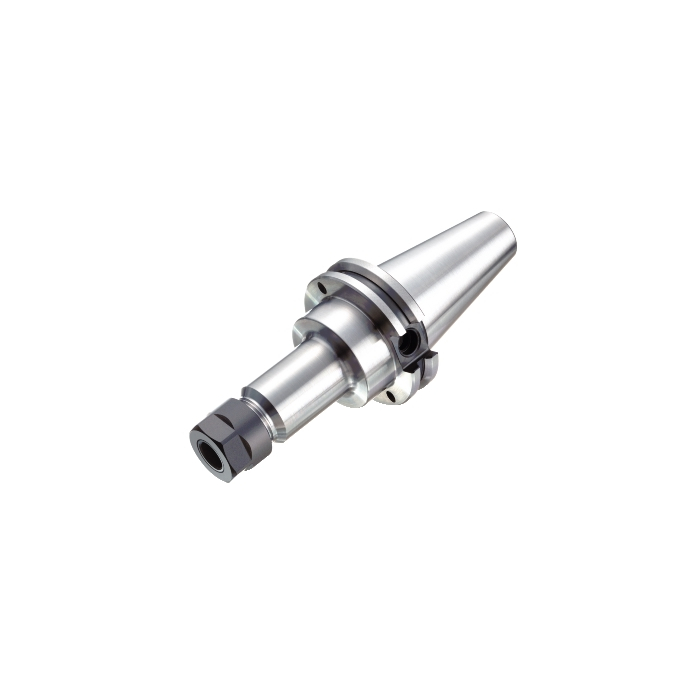

Sandvik Coromant AA3B14-50 40 105 CAT-V to ER collet chuck

Name: Sandvik Coromant AA3B14-50 40 105 CAT-V to ER collet chuck
SKU: 5721454
Price: 2887.65 ZAR
Availability: InStock

R 2 887,65 inc. vat

In stock

SKU

5721454

CAT-V to ER collet chuck

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CAT-V to ER collet chuck

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	69.85mm
DCON - Connection Diameter	41mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	86.1mm
BD - Body Diameter	69.85mm
LB - Body Length	85.6mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	120001/min
WT - Weight Of Item	3.932kg
OAL - Overall Length	206.44mm
OHX - Maximum Overhang	86.1mm
ORDCODE	AA3B14-50 40 105
ADINTMS - Adaptive Interface Machine Direction	M_SKG37_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CLTERB_C0400_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
CRKS - Connection Retention Knob Thread Size	1"-8
BMC - Body Material Code	1
CHANGEDATE	2022-01-26 10:19:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	ASME B5.50
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
