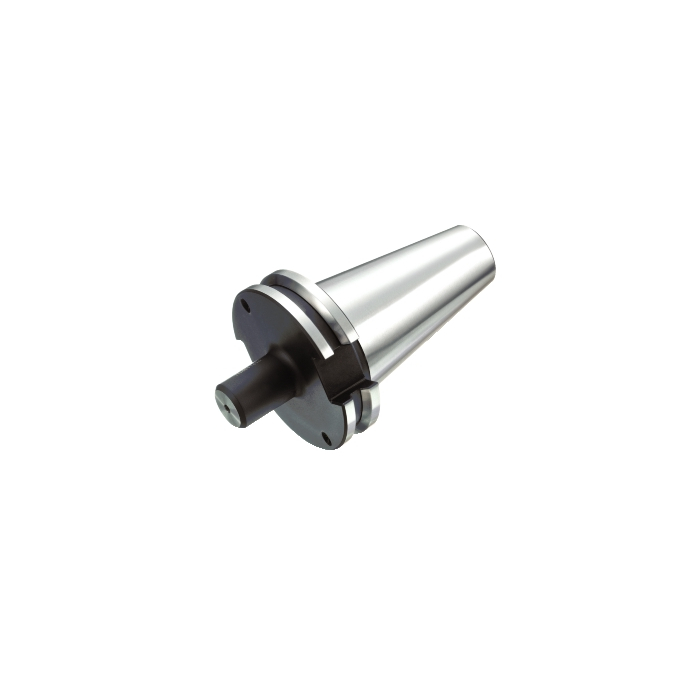

Sandvik Coromant AA3B20-40 25 101 CAT-V to Weldon adaptor

R 1 849,20 inc. vat
In stock
SKU
5721448
CAT-V to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CAT-V to Weldon adaptor
More Information
CP - Coolant Pressure 2000000Pa
DFC - Functional Diameter 44.45mm
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 101.6mm
BD - Body Diameter 50.8mm
LB - Body Length 82.6mm
BHTA - Body Half Taper Angle 45deg
TQ - Torque 25Nm
RPMX - Rotational Speed Maximum 180001/min
WT - Weight Of Item 1.59kg
OAL - Overall Length 170mm
OHX - Maximum Overhang 101.6mm
LSC - Clamping Length 60mm
ORDCODE AA3B20-40 25 101
ADINTMS - Adaptive Interface Machine Direction M_SKG37_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLW_S1000_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
DCPS - Data Chip Provision Size 2
CRKS - Connection Retention Knob Thread Size 5/8"-11
BMC - Body Material Code 1
CHANGEDATE 2021-12-20 22:21:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number ASME B5.50
DPC - Damping Property False
DCP - Data Chip Provision True
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
