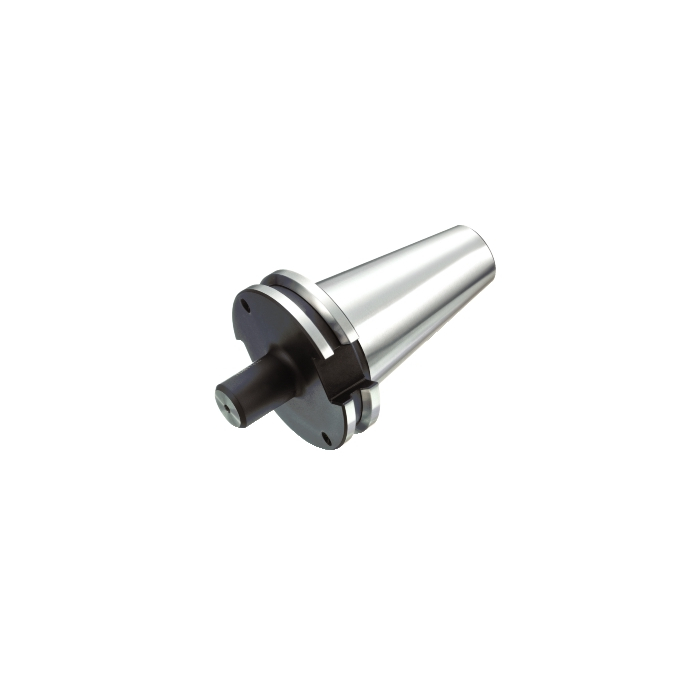

Sandvik Coromant AA3B20-50 51 143 CAT-V to Weldon adaptor

Name: Sandvik Coromant AA3B20-50 51 143 CAT-V to Weldon adaptor
SKU: 5721207
Price: 2597.85 ZAR
Availability: OutOfStock

R 2 597,85 inc. vat

Out of stock

SKU

5721207

CAT-V to Weldon adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CAT-V to Weldon adaptor

More Information
CP - Coolant Pressure	2000000Pa
DFC - Functional Diameter	69.85mm
DCON - Connection Diameter	50.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	142.875mm
BD - Body Diameter	95.2mm
LB - Body Length	123.8mm
BHTA - Body Half Taper Angle	45deg
TQ - Torque	50Nm
RPMX - Rotational Speed Maximum	120001/min
WT - Weight Of Item	7.35kg
OAL - Overall Length	244.675mm
OHX - Maximum Overhang	142.875mm
LSC - Clamping Length	84mm
ORDCODE	AA3B20-50 51 143
ADINTMS - Adaptive Interface Machine Direction	M_SKG37_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLW_S2000_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
CRKS - Connection Retention Knob Thread Size	1"-8
BMC - Body Material Code	1
CHANGEDATE	2021-12-20 22:21:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	ASME B5.50
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
