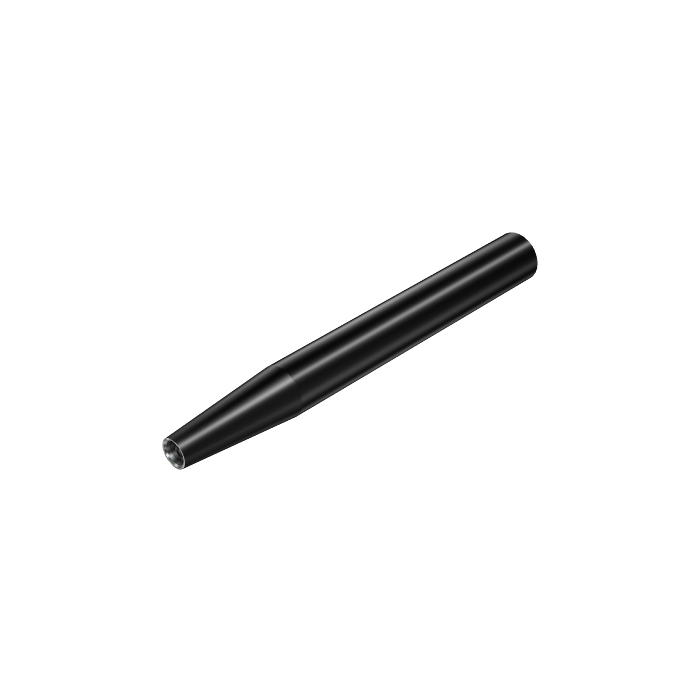

Sandvik Coromant AE12-A16-CS-065 Cylindrical shank to Coromant EH adaptor
R 3 481,05
inc. vat
In stock
SKU
5721512
Cylindrical shank to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Cylindrical shank to Coromant EH adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DCON - Connection Diameter | 15.875mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 165.1mm |
| BD - Body Diameter | 12.2mm |
| LB - Body Length | 21mm |
| BHTA - Body Half Taper Angle | 5deg |
| TQ - Torque | 15Nm |
| RPMX - Rotational Speed Maximum | 120001/min |
| WT - Weight Of Item | 0.29kg |
| OAL - Overall Length | 165.1mm |
| OHX - Maximum Overhang | 124.1mm |
| LSC - Clamping Length | 144mm |
| ORDCODE | AE12-A16-CS-065 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R6250_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_B0120_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-02-09 13:50:00.000 |
| TCDCON - Connection Diameter Tolerance | h6 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
