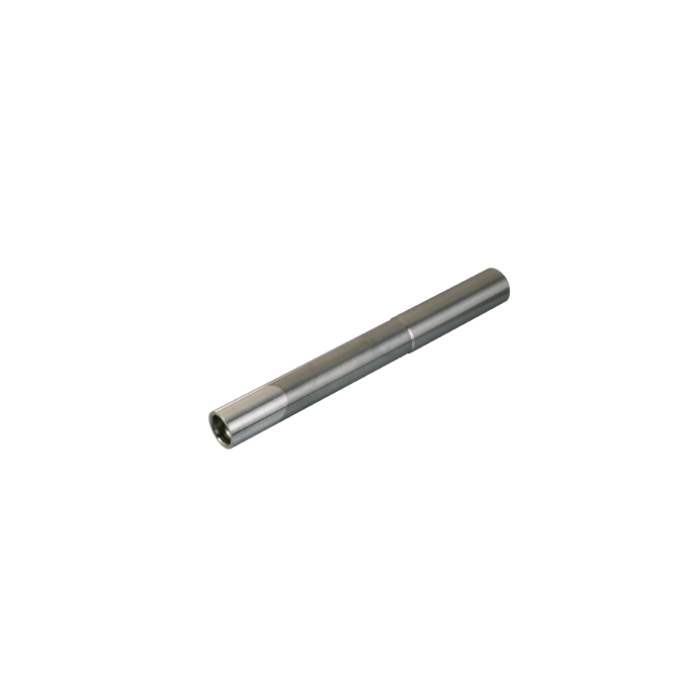

Sandvik Coromant AE25-A32-SE-065 Cylindrical shank to Coromant EH adaptor

Name: Sandvik Coromant AE25-A32-SE-065 Cylindrical shank to Coromant EH adaptor
SKU: 5781743
Price: 13574.60 ZAR
Availability: InStock

Be the first to review this product

R 13 574,60 inc. vat

In stock

SKU

5781743

Cylindrical shank to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to Coromant EH adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	24.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	165.1mm
BD - Body Diameter	31.75mm
LB - Body Length	165.1mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	65Nm
RPMX - Rotational Speed Maximum	370001/min
WT - Weight Of Item	1.575kg
OAL - Overall Length	165.1mm
OHX - Maximum Overhang	114.1mm
LSC - Clamping Length	99mm
ORDCODE	AE25-A32-SE-065
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1250_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_B0250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	2
CHANGEDATE	2022-02-09 14:09:00.000
TCDCON - Connection Diameter Tolerance	h6
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
