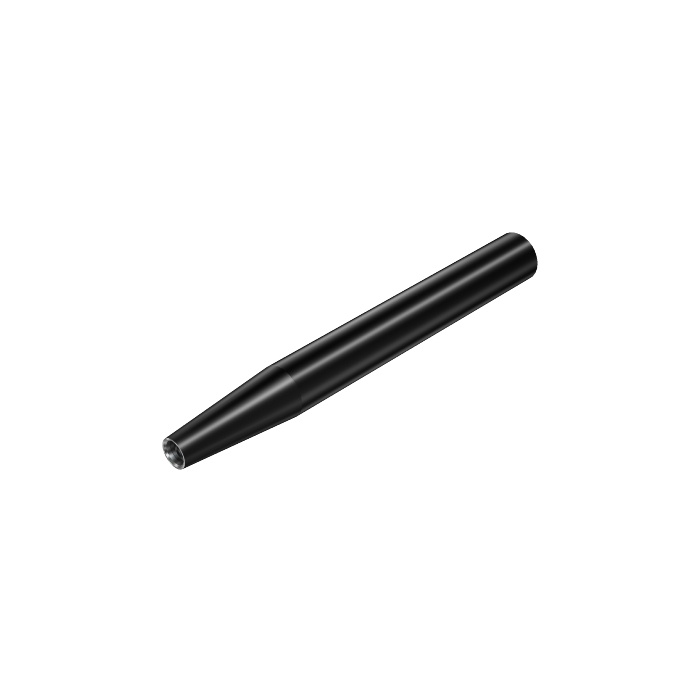

Sandvik Coromant AEH16-A25-CS-065 Cylindrical shank to Coromant EH adaptor

Name: Sandvik Coromant AEH16-A25-CS-065 Cylindrical shank to Coromant EH adaptor
SKU: 6731071
Price: 4175.65 ZAR
Availability: OutOfStock

Be the first to review this product

R 4 175,65 inc. vat

Out of stock

SKU

6731071

Cylindrical shank to Coromant EH adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Cylindrical shank to Coromant EH adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	15.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	165.1mm
BD - Body Diameter	25.4mm
LB - Body Length	165.1mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	30Nm
RPMX - Rotational Speed Maximum	310001/min
WT - Weight Of Item	0.66kg
OAL - Overall Length	165.1mm
OHX - Maximum Overhang	118.1mm
LSC - Clamping Length	107.9mm
ORDCODE	AEH16-A25-CS-065
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1000_1
ADINTWS - Adaptive Interface Workpiece Direction	W_SAT01_B0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-08-25 15:47:00.000
TCDCON - Connection Diameter Tolerance	h6
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
