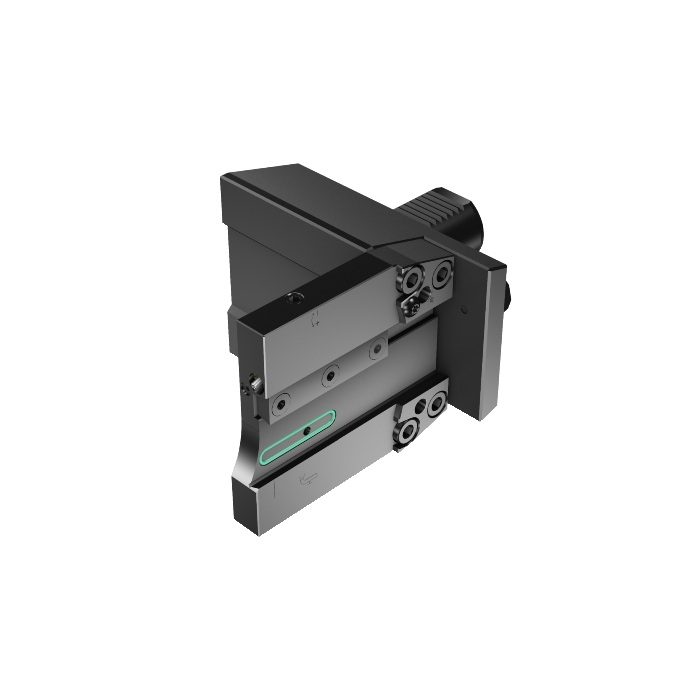

Sandvik Coromant APBL-MZ40V-25-HP-ET Mazak turret interface to blade adaptor

Name: Sandvik Coromant APBL-MZ40V-25-HP-ET Mazak turret interface to blade adaptor
SKU: 6749560
Price: 24980.30 ZAR
Availability: InStock

Be the first to review this product

R 24 980,30 inc. vat

In stock

SKU

6749560

Mazak turret interface to blade adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Mazak turret interface to blade adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	123.5mm
TQ - Torque	10Nm
WT - Weight Of Item	4.422kg
OAL - Overall Length	193.5mm
OHX - Maximum Overhang	123.5mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	62mm
HF - Functional Height	25mm
LPR - Protruding Length	123.5mm
OAH - Overall Height	100mm
OAW - Overall Width	150.5mm
ORDCODE	APBL-MZ40V-25-HP-ET
ADINTMS - Adaptive Interface Machine Direction	M_FLC02DN_C040N_1
ADINTWS - Adaptive Interface Workpiece Direction	W_PMC012_C025L_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 11:20:00.000
Hand	L
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
