R 13 358,40
inc. vat
Out of stock
SKU
6047716

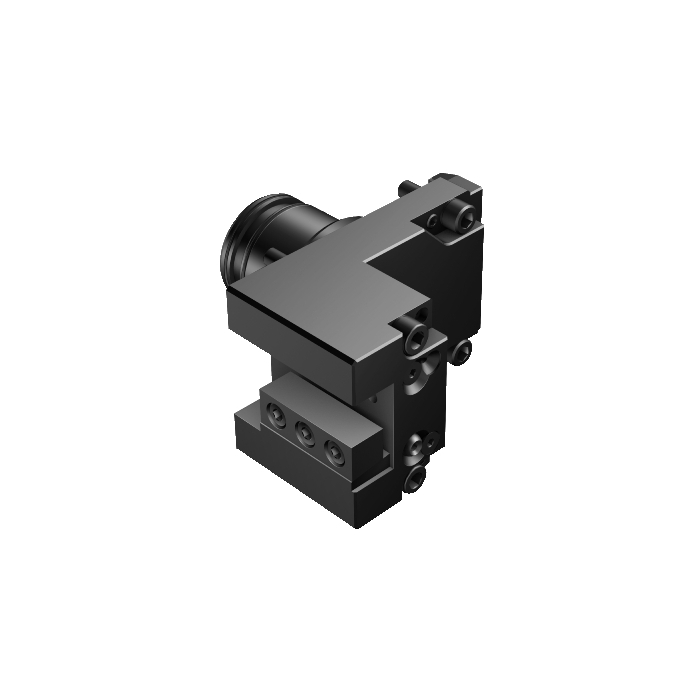

CDI 80 turret interface to rectangular shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
CDI 80 turret interface to rectangular shank adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DCON - Connection Diameter | 80mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 85mm |
TQ - Torque | 25Nm |
WT - Weight Of Item | 7.138kg |
OAL - Overall Length | 160mm |
OHX - Maximum Overhang | 85mm |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 61mm |
HF - Functional Height | 25mm |
LPR - Protruding Length | 85mm |
OAH - Overall Height | 98mm |
OAW - Overall Width | 156mm |
ORDCODE | ASH-TNE-CDI80-25 |
ADINTMS - Adaptive Interface Machine Direction | M_FLC02_C0380_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_VKT01_A2525_1 |
CNSC - Coolant Entry Style Code | 7 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-04 11:08:00.000 |
Hand | N |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
