CP86500 WORKSHOP PRESS - 50 TON
R 205 395,75
inc. vat
In stock
SKU
CP-8941086500
Reliable nationwide shipping
Delivery in 4 - 5 days

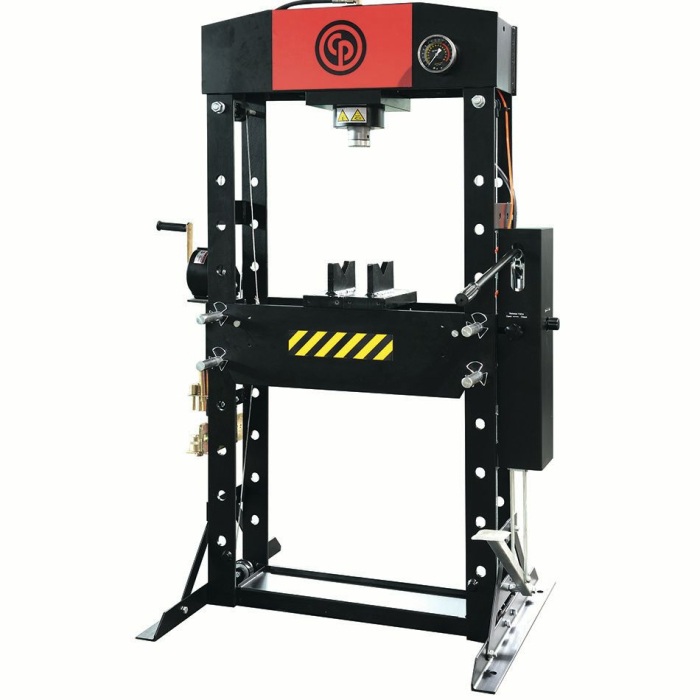

50-Ton Workshop Press. Durable, precise & high capacity.
Benefits
- High stability
- Durable & sturdy
- Precision
- Easy control
- Stable
- Comfort
CE Certificate
Operators Manual
Operators Manual
Operators Manual
Exploded View 1
Exploded View 2
Exploded View 3
Safety Instructions & Data Sheets
| Metric | Imperial | |
|---|---|---|
| Model | CP86500 | |
| Part number | 8941086500 | |
| Description | CP86500 workshop press | |
| Capacity | 50 ton(s) | 55.12 short ton(s) |
| Dimension A | 1030 mm | 40.6 " |
| Dimension B | 800 mm | 31.5 " |
| Dimension C | 1830 mm | 72 " |
| Dimension E | 730 mm | 28.7 " |
| Dimension F | 207 mm | 8.1 " |
| Dimension F1 | 68 mm | 2.7 " |
| Dimension F2 | 1048 mm | 41.3 " |
| Dimension M | 245 mm | 9.6 " |
| Dimension R | 200 mm | 7.9 " |
| European Standards | EN 693:2001 + A1 + A2 | |
| Net weight | 298 kg | 657 lb |
| Oil capacity | 2 1/2 ml |
- 2 holes in each foot to fix in the floor
- Steel frame
- 2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine-tuning of the load
- Large gauge measuring short and metric tons
- Delivered with 2 V blocks
- Easy to use handle with rubber grip
- Delivered with a quick chuck and 8 punches
