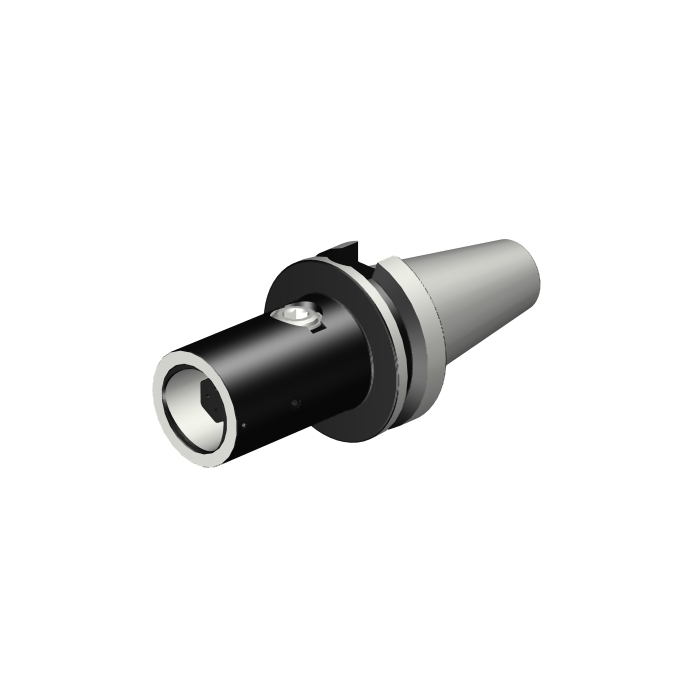

Sandvik Coromant BB50-QC-C6-135 BIG-PLUS MAS-BT to Coromant Capto™ adaptor with Quick change
R 18 370,10
inc. vat
Out of stock
SKU
6901630
BIG-PLUS MAS-BT to Coromant Capto® adaptor with Quick change
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS MAS-BT to Coromant Capto® adaptor with Quick change
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 44mm |
| DCON - Connection Diameter | 63mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 135mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 135mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 90Nm |
| WT - Weight Of Item | 5.333kg |
| OAL - Overall Length | 236.8mm |
| OHX - Maximum Overhang | 135mm |
| ORDCODE | BB50-QC-C6-135 |
| ADINTMS - Adaptive Interface Machine Direction | M_SKG57BP_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0630_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 1 |
| CRKS - Connection Retention Knob Thread Size | M24 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-25 15:52:00.000 |
| STDLET - Standard Letter | AD/B |
| STDNO - Standard Number | MAS403-BT (BIG-PLUS) |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
