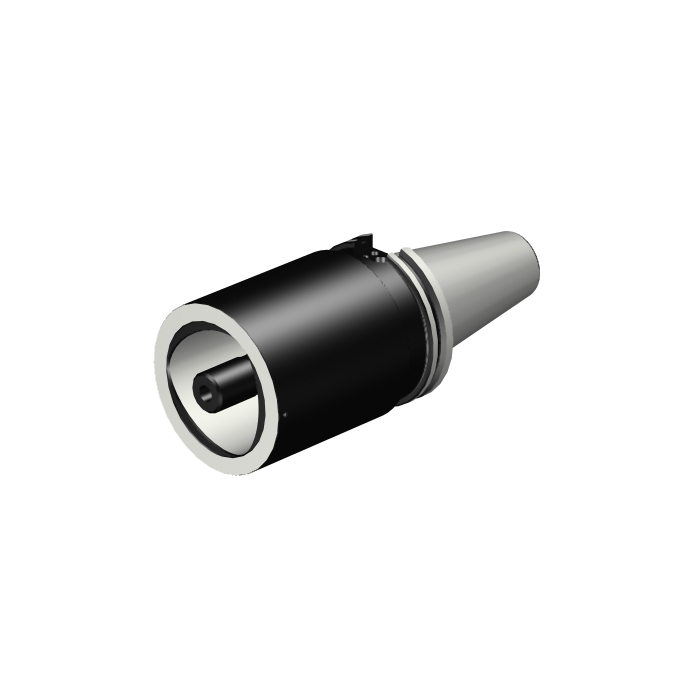

Sandvik Coromant C10-A390.544-50 140 BIG-PLUS CAT-V to Coromant Capto™ adaptor

Name: Sandvik Coromant C10-A390.544-50 140 BIG-PLUS CAT-V to Coromant Capto™ adaptor
SKU: 6228976
Price: 12919.10 ZAR
Availability: OutOfStock

Be the first to review this product

R 12 919,10 inc. vat

Out of stock

SKU

6228976

BIG-PLUS CAT-V to Coromant Capto® adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

BIG-PLUS CAT-V to Coromant Capto® adaptor

More Information

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	72mm
DCON - Connection Diameter	100mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	140mm
BD - Body Diameter	100mm
LB - Body Length	140mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	380Nm
WT - Weight Of Item	7.82kg
OAL - Overall Length	241.8mm
OHX - Maximum Overhang	140mm
ORDCODE	C10-A390.544-50 140
ADINTMS - Adaptive Interface Machine Direction	M_SKG37BP_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS03_C1000_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
CRKS - Connection Retention Knob Thread Size	1"-8
BMC - Body Material Code	1
CHANGEDATE	2022-08-24 06:07:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	ISO26623-2
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
