Sandvik Coromant C10-QC-C8-150 Coromant Capto™ reduction adaptor with Quick change
R 13 348,05
inc. vat
Out of stock
SKU
6883192

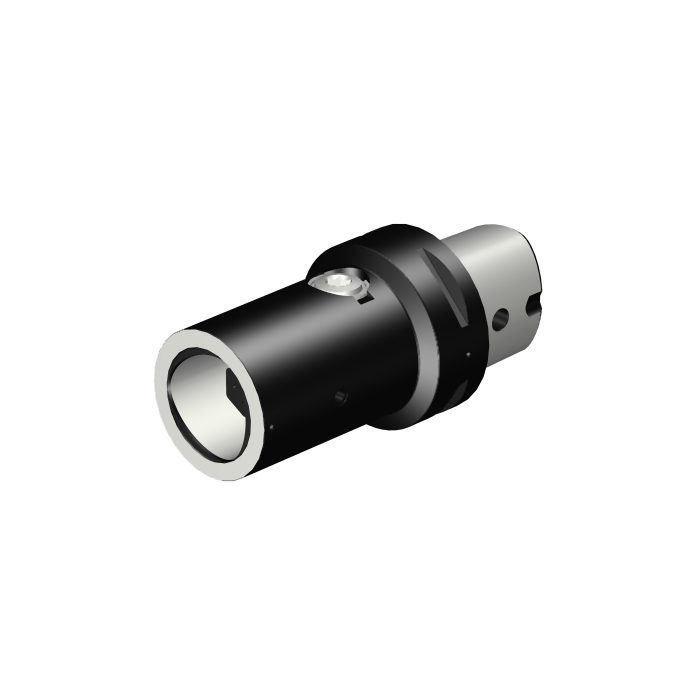

Coromant Capto® reduction adaptor with Quick change
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® reduction adaptor with Quick change
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 55mm |
| DCON - Connection Diameter | 80mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 150mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 150mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 130Nm |
| RPMX - Rotational Speed Maximum | 100001/min |
| WT - Weight Of Item | 6.63kg |
| OAL - Overall Length | 210mm |
| OHX - Maximum Overhang | 150mm |
| ORDCODE | C10-QC-C8-150 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0800_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-25 15:51:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
