R 5 951,25
inc. vat
In stock
SKU
5727176

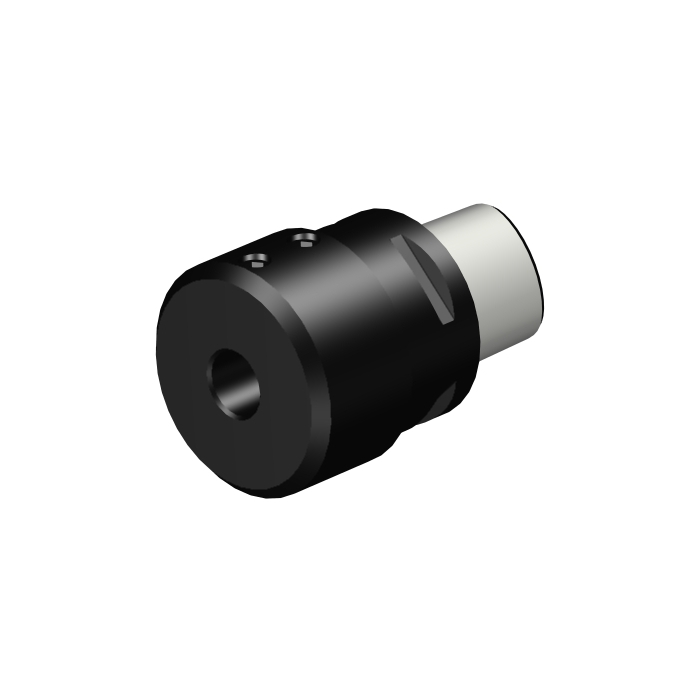

Coromant Capto® to cylindrical shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to cylindrical shank adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 22mm |
DCON - Connection Diameter | 10mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 35mm |
BD - Body Diameter | 36mm |
LB - Body Length | 35mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 10Nm |
WT - Weight Of Item | 0.259kg |
OAL - Overall Length | 54mm |
OHX - Maximum Overhang | 35mm |
LSC - Clamping Length | 20mm |
BAWS - Workpiece Side Body Angle | 0deg |
OHN - Minimum Overhang | 35mm |
WF - Functional Width | 0mm |
HF - Functional Height | 0mm |
LPR - Protruding Length | 35mm |
DIX - Maximum Tool Changer Interference Diameter | 36mm |
ORDCODE | C3-131-00035-10 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0320_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLSF_G1000_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-09 12:05:00.000 |
STDNO - Standard Number | ISO26623-1 |
Hand | N |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
SEAL - Sealing Property | False |
