Sandvik Coromant C3-391.01-32 080A Coromant Capto™ extension adaptor
Next
Sandvik Coromant C3-391.01-32 060A Coromant Capto™ extension adaptor
Previous
![Sandvik Coromant C3-391.01-32 080A Coromant Capto™ extension adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/430845d95/sandvik-coromant-c3-391-01-32-080a-coromant-captotm-extension-adaptor.jpg)
![Sandvik Coromant C3-391.01-32 060A Coromant Capto™ extension adaptor](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/43082f181/sandvik-coromant-c3-391-01-32-060a-coromant-captotm-extension-adaptor.jpg)
R 5 252,05
inc. vat
Out of stock
SKU
5727167

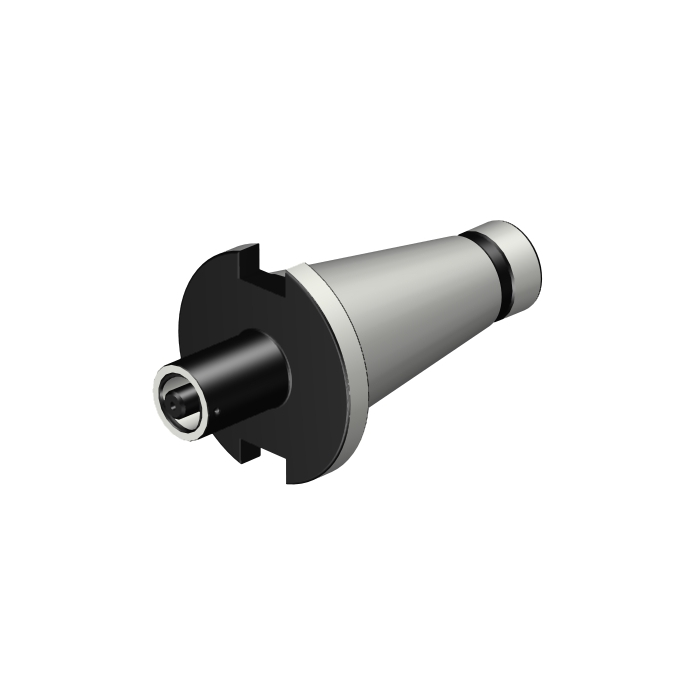

DIN 2080 to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
DIN 2080 to Coromant Capto® adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 22mm |
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
BD - Body Diameter | 97.5mm |
LB - Body Length | 60mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 45Nm |
WT - Weight Of Item | 2.888kg |
OAL - Overall Length | 186.8mm |
OHX - Maximum Overhang | 60mm |
ORDCODE | C3-390.00-50 060 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG21_A0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0320_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | M24 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-23 23:08:00.000 |
STDLET - Standard Letter | AD |
STDNO - Standard Number | DIN2080 |
DPC - Damping Property | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
