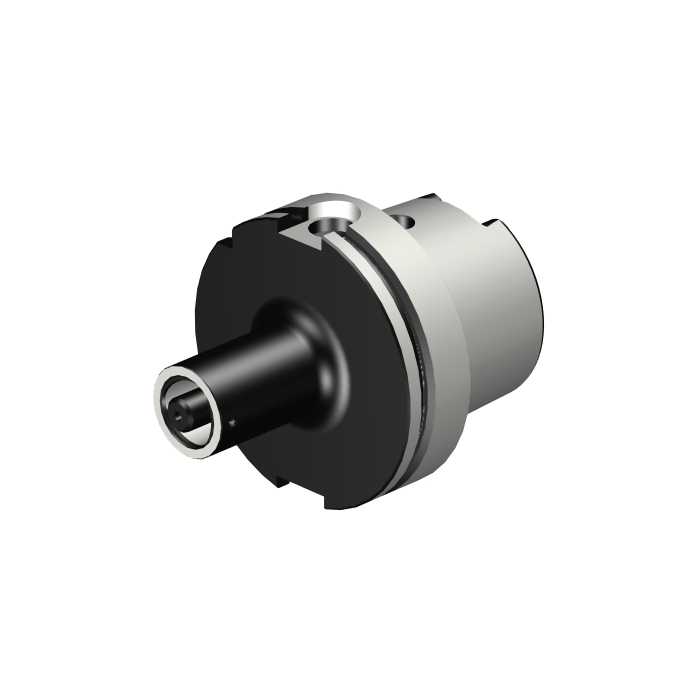

Sandvik Coromant C3-390.410-100 080A HSK to Coromant Capto™ adaptor
R 8 815,90
inc. vat
In stock
SKU
5726962
HSK to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
HSK to Coromant Capto® adaptor
| CP - Coolant Pressure | 10000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 80mm |
| BD - Body Diameter | 100mm |
| LB - Body Length | 80mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 45Nm |
| WT - Weight Of Item | 2.304kg |
| OAL - Overall Length | 130mm |
| OHX - Maximum Overhang | 80mm |
| ORDCODE | C3-390.410-100 080A |
| ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C1000_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0320_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-20 05:04:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | DIN69893-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
