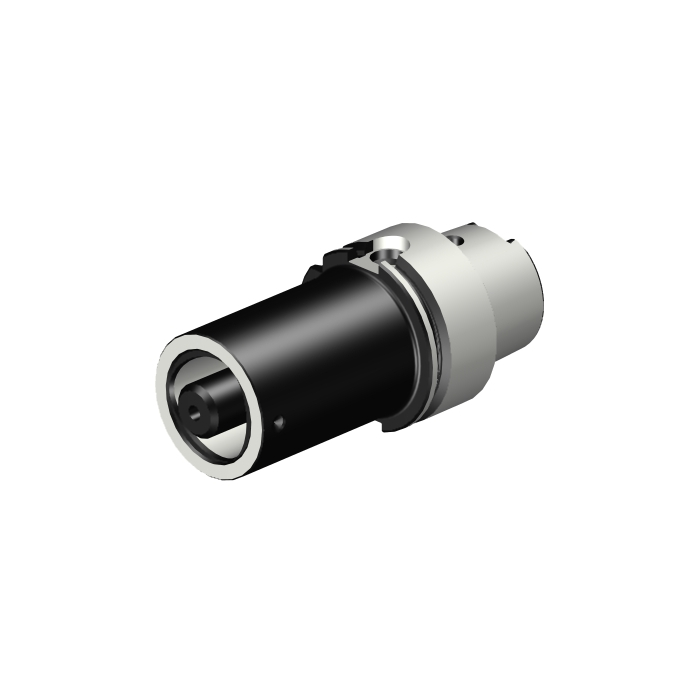

Sandvik Coromant C3-390.419-40 065 HSK to Coromant Capto™ adaptor

Name: Sandvik Coromant C3-390.419-40 065 HSK to Coromant Capto™ adaptor
SKU: 6228985
Price: 8338.65 ZAR
Availability: InStock

R 8 338,65 inc. vat

In stock

SKU

6228985

HSK to Coromant Capto® adaptor

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to Coromant Capto® adaptor

More Information
CP - Coolant Pressure	10000000Pa
DFC - Functional Diameter	22mm
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	65mm
BD - Body Diameter	40mm
LB - Body Length	65mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	45Nm
WT - Weight Of Item	433g
OAL - Overall Length	85mm
OHX - Maximum Overhang	65mm
ORDCODE	C3-390.419-40 065
ADINTMS - Adaptive Interface Machine Direction	M_HSK07_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS03_C0320_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-01-20 05:07:00.000
STDLET - Standard Letter	T
STDNO - Standard Number	DIN69893-7
DPC - Damping Property	False
DCP - Data Chip Provision	False
BBD - Balanced By Design	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
