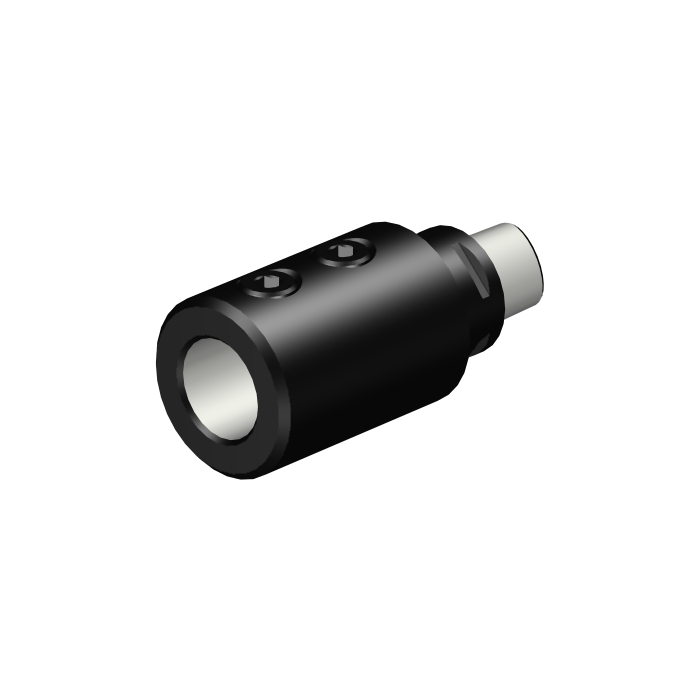

Sandvik Coromant C3-391.27-25 080 Coromant Capto™ to ISO 9766 adaptor
R 5 344,05
inc. vat
Out of stock
SKU
7079911
Coromant Capto® to ISO 9766 adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to ISO 9766 adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 25mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 80mm |
| BD - Body Diameter | 45mm |
| LB - Body Length | 80mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 20Nm |
| RPMX - Rotational Speed Maximum | 320001/min |
| WT - Weight Of Item | 0.655kg |
| OAL - Overall Length | 99mm |
| OHX - Maximum Overhang | 80mm |
| LSC - Clamping Length | 57.5mm |
| ORDCODE | C3-391.27-25 080 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0320_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLISO_G2500_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-20 07:50:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
