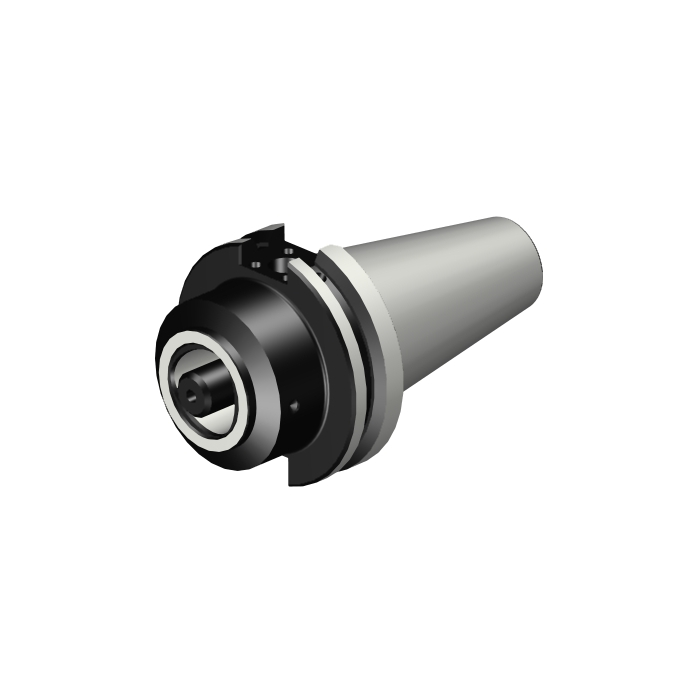

Sandvik Coromant C3-A390.545-40 040A BIG-PLUS CAT-V to Coromant Capto™ adaptor

R 7 928,10 inc. vat
In stock
SKU
5726735
BIG-PLUS CAT-V to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS CAT-V to Coromant Capto® adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 22mm
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 40mm
BD - Body Diameter 63.5mm
LB - Body Length 40mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 45Nm
WT - Weight Of Item 1.011kg
OAL - Overall Length 108.4mm
OHX - Maximum Overhang 40mm
ORDCODE C3-A390.545-40 040A
ADINTMS - Adaptive Interface Machine Direction M_SKG37BP_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_CCS03_C0320_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
CRKS - Connection Retention Knob Thread Size 5/8"-11
BMC - Body Material Code 1
CHANGEDATE 2022-01-20 05:08:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number ISO26623-2
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design True
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
