Sandvik Coromant C3-CRSNR-22040-09ID T-Max™ cutting unit for turning
R 4 895,55
inc. vat
Out of stock
SKU
5727065
T-Max® cutting unit for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® cutting unit for turning
| CP - Coolant Pressure | 4000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 40mm |
| TQ - Torque | 7.5Nm |
| WT - Weight Of Item | 260.5g |
| OAL - Overall Length | 59mm |
| OHX - Maximum Overhang | 40mm |
| RMPX - Maximum Ramping Angle | 7deg |
| BAWS - Workpiece Side Body Angle | 0deg |
| BAMS - Machine Side Body Angle | 0deg |
| WF - Functional Width | 22mm |
| HF - Functional Height | 0mm |
| GAMO - Orthogonal Rake Angle | -6deg |
| LAMS - Inclination Angle | -6deg |
| AN - Clearance Angle Major | 0deg |
| IC - Inscribed Circle Diameter | 9.525mm |
| RE - Corner Radius | 4.7625mm |
| Insert Thickness | 3.175mm |
| ORDCODE | C3-CRSNR-22040-09ID |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0320_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 6 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-05-15 03:04:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RN0903_1 |
| Hand | R |

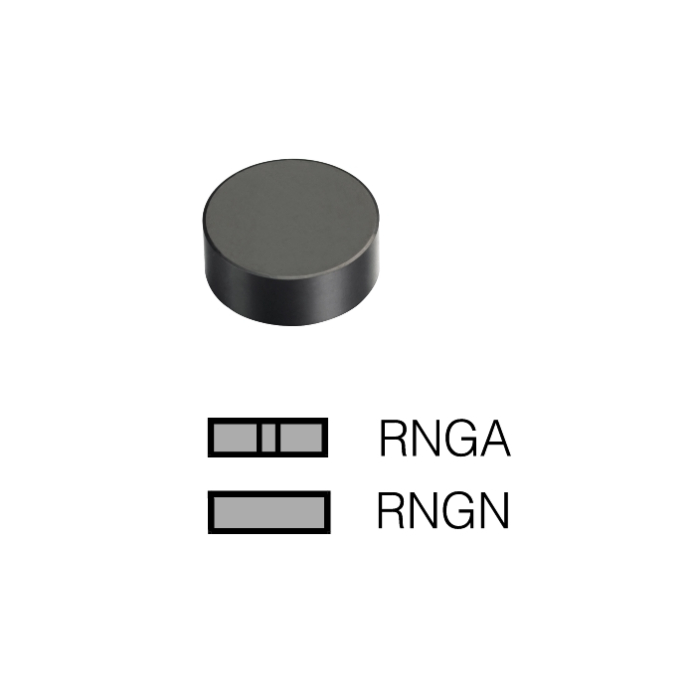

| MIID - Master Insert Identification | RNGN 09 03 00 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 09 |
| CICT - Cutting Item Count | 1 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
