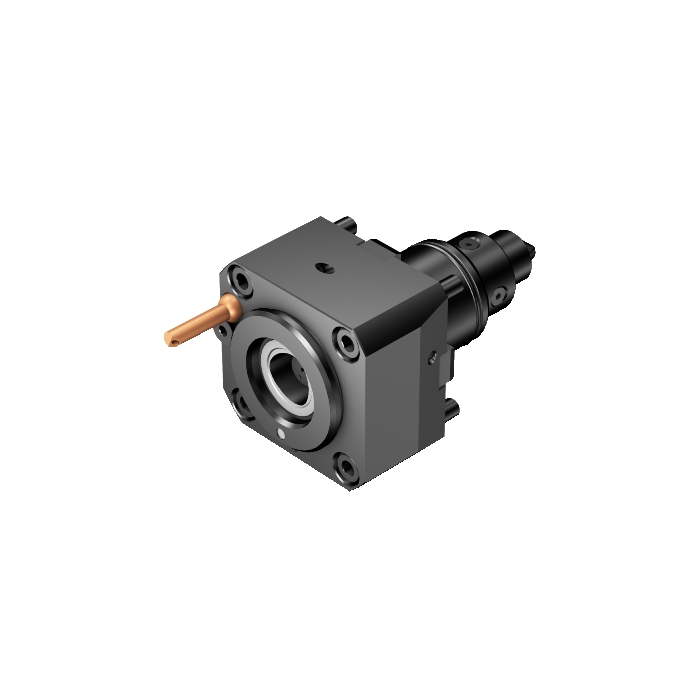

Sandvik Coromant C3-DNE-BT45A-E Driven tool holder for BMT-P turrets
R 53 807,35
inc. vat
Out of stock
SKU
6866768
Driven tool holder for BMT-P turrets
Reliable nationwide shipping
Delivery in 4 - 5 days
Driven tool holder for BMT-P turrets
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 48mm |
| TQ - Torque | 25Nm |
| RPMX - Rotational Speed Maximum | 60001/min |
| WT - Weight Of Item | 2.828kg |
| OAL - Overall Length | 137mm |
| OHX - Maximum Overhang | 48mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| LPR - Protruding Length | 53mm |
| OAH - Overall Height | 81.5mm |
| OAW - Overall Width | 76.5mm |
| ORDCODE | C3-DNE-BT45A-E |
| ADINTMS - Adaptive Interface Machine Direction | M_FLC02BD_C045D_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0320_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 6 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-06 07:57:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | N |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
| RIDOP - Reversed Rotation Direction Output Side | False |
