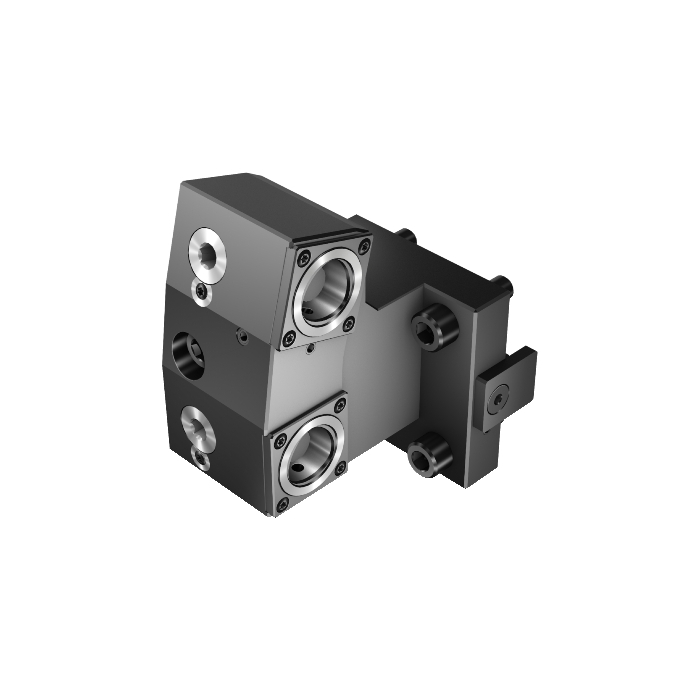

Sandvik Coromant C3-TLI-NA55A-TT Manual clamping unit for Nakamura Tome machines

Name: Sandvik Coromant C3-TLI-NA55A-TT Manual clamping unit for Nakamura Tome machines
SKU: 6749627
Price: 43045.65 ZAR
Availability: OutOfStock

Be the first to review this product

R 43 045,65 inc. vat

Out of stock

SKU

6749627

Manual clamping unit for Nakamura Tome machines

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Manual clamping unit for Nakamura Tome machines

More Information

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	22mm
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	82.5mm
TQ - Torque	35Nm
WT - Weight Of Item	4.073kg
OAL - Overall Length	101.5mm
OHX - Maximum Overhang	82.5mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	20mm
HF - Functional Height	0mm
LPR - Protruding Length	101.5mm
OAH - Overall Height	131.8mm
OAW - Overall Width	80mm
ORDCODE	C3-TLI-NA55A-TT
ADINTMS - Adaptive Interface Machine Direction	M_FLC02EN_C055N_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0320_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:25:00.000
STDNO - Standard Number	ISO26623-2
Hand	L
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
