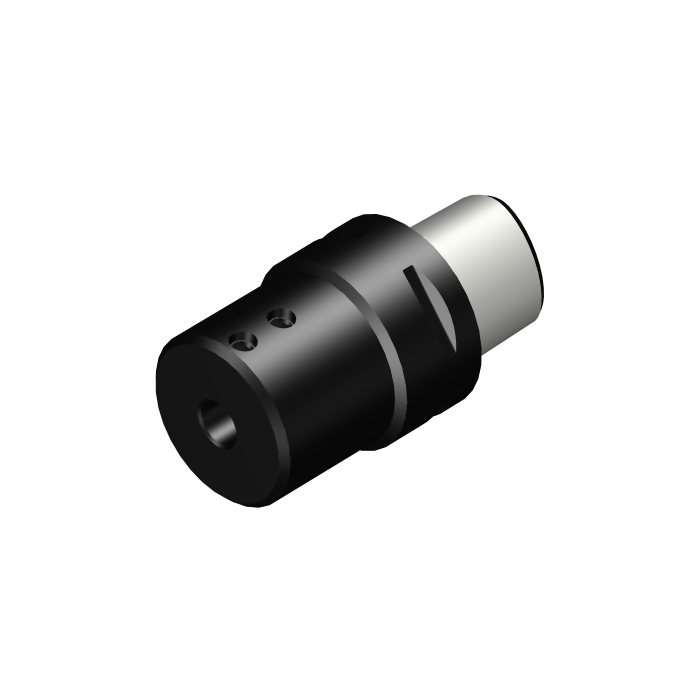

Sandvik Coromant C4-131-00050-375 Coromant Capto™ to cylindrical shank adaptor

R 5 951,25 inc. vat
In stock
SKU
5727724
Coromant Capto® to cylindrical shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to cylindrical shank adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 28mm
DCON - Connection Diameter 9.525mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
BD - Body Diameter 36mm
LB - Body Length 50mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 10Nm
WT - Weight Of Item 0.472kg
OAL - Overall Length 74mm
OHX - Maximum Overhang 50mm
LSC - Clamping Length 30mm
BAWS - Workpiece Side Body Angle 0deg
OHN - Minimum Overhang 50mm
WF - Functional Width 0mm
HF - Functional Height 0mm
LPR - Protruding Length 50mm
DIX - Maximum Tool Changer Interference Diameter 36.068mm
ORDCODE C4-131-00050-375
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_CYLSF_R3750_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2021-11-16 10:50:00.000
STDNO - Standard Number ISO26623-1
Hand N
DPC - Damping Property False
DCP - Data Chip Provision False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
SEAL - Sealing Property False
