R 5 231,35
inc. vat
In stock
SKU
6048702

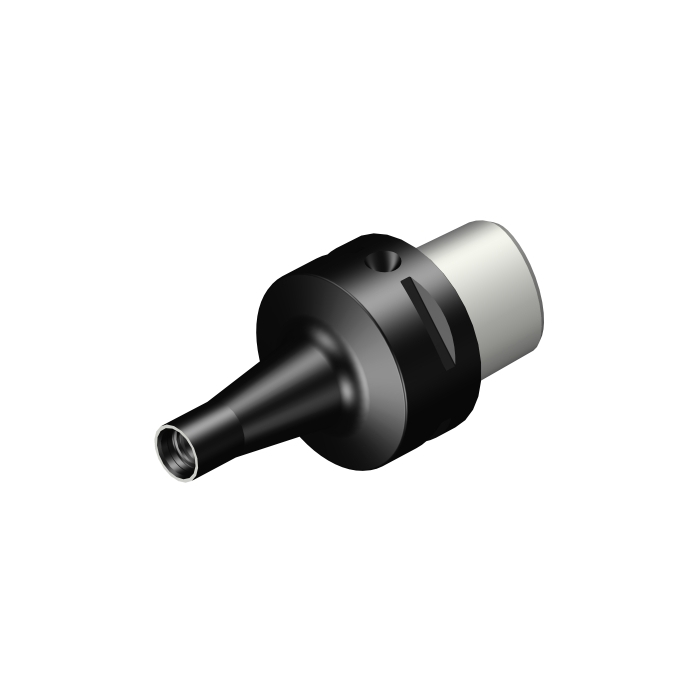

Coromant Capto® to Coromant EH adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to Coromant EH adaptor
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 11.6mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
BD - Body Diameter | 40mm |
LB - Body Length | 60mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 15Nm |
RPMX - Rotational Speed Maximum | 390001/min |
WT - Weight Of Item | 0.303kg |
OAL - Overall Length | 84mm |
OHX - Maximum Overhang | 60mm |
ORDCODE | C4-391.EH-12 060 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SAT01_A0120_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-11-12 10:04:00.000 |
STDNO - Standard Number | ISO26623-1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
