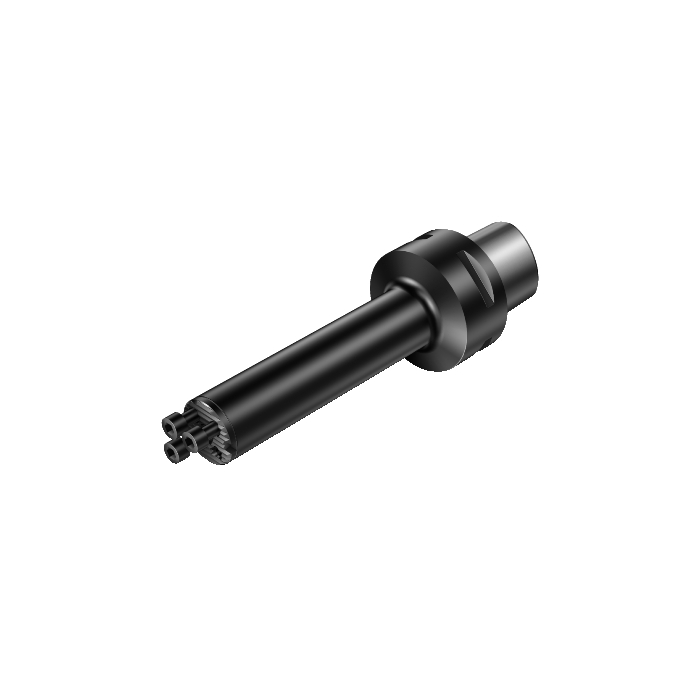

Sandvik Coromant C4-570-3C 32 224 Coromant Capto™ to CoroTurn™ SL damped adaptor

R 32 546,15 inc. vat
In stock
SKU
6750022
Coromant Capto® to CoroTurn® SL damped adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroTurn® SL damped adaptor
More Information
CP - Coolant Pressure 7000000Pa
DFC - Functional Diameter 28mm
DCON - Connection Diameter 32mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 224mm
BD - Body Diameter 32mm
LB - Body Length 200.6mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 8.8Nm
WT - Weight Of Item 2.08kg
OAL - Overall Length 248.325mm
OHX - Maximum Overhang 224mm
BAWS - Workpiece Side Body Angle 0deg
OHN - Minimum Overhang 224mm
WF - Functional Width 0mm
HF - Functional Height 0mm
LPR - Protruding Length 224mm
ORDCODE C4-570-3C 32 224
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction W_SLHDSS_C0320_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 1
BMC - Body Material Code 1
CHANGEDATE 2022-05-23 19:22:00.000
STDNO - Standard Number ISO26623-1
Hand N
DPC - Damping Property True
DCP - Data Chip Provision False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
