R 6 545,80
inc. vat
In stock
SKU
5727026

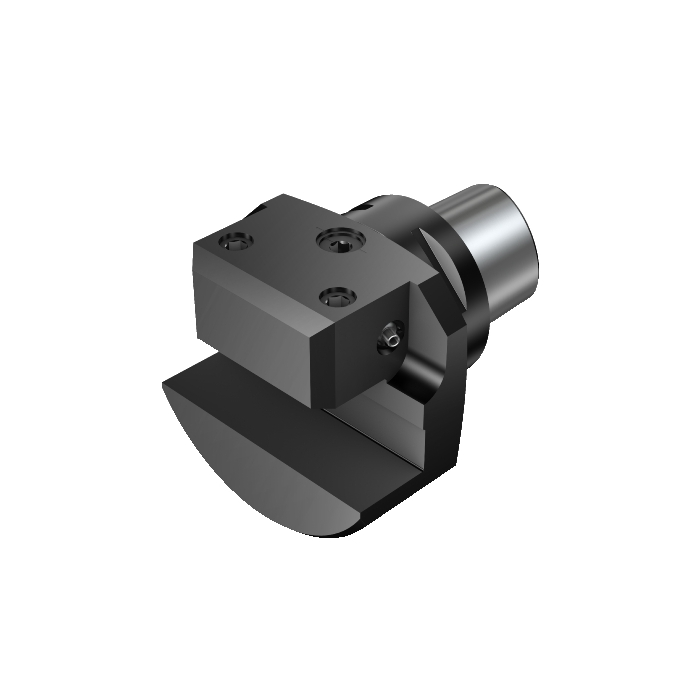

Coromant Capto® to rectangular shank adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to rectangular shank adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 30mm |
WT - Weight Of Item | 0.7kg |
OAL - Overall Length | 70mm |
OHX - Maximum Overhang | 30mm |
BAWS - Workpiece Side Body Angle | 90deg |
WF - Functional Width | 50mm |
HF - Functional Height | 15.875mm |
LPR - Protruding Length | 46mm |
OAH - Overall Height | 57mm |
OAW - Overall Width | 50mm |
RADH - Radial Body Height | 32mm |
RADW - Radial Body Width | 24.9936mm |
DIX - Maximum Tool Changer Interference Diameter | 70mm |
ORDCODE | C4-ASHA-25046-10U |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_VKT01_B1010_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 6 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-07-05 15:22:00.000 |
STDNO - Standard Number | ISO26623-1 |
Hand | L |
CCONWS - Workpiece Side Connection Count | 1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
