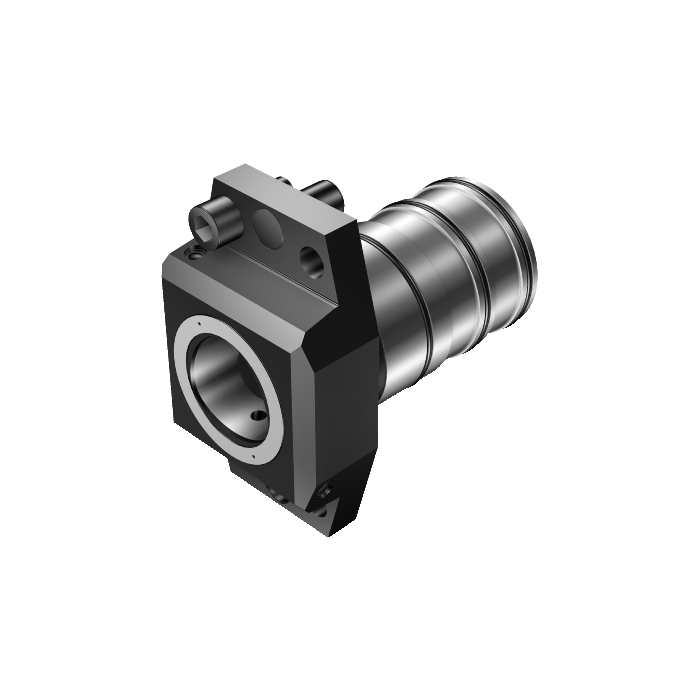

Sandvik Coromant C4-NC5010-00025 Hydraulic clamping unit
R 42 962,85
inc. vat
In stock
SKU
5728237
Hydraulic clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
Hydraulic clamping unit
| CP - Coolant Pressure | 15000000Pa |
|---|---|
| DFC - Functional Diameter | 28mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 25mm |
| WT - Weight Of Item | 1.4kg |
| OAL - Overall Length | 103mm |
| OHX - Maximum Overhang | 25mm |
| LSC - Clamping Length | 74mm |
| DMIN - Minimum Bore Diameter | 260mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| OAH - Overall Height | 92mm |
| OAW - Overall Width | 48mm |
| HTB - Body Height | 56mm |
| ORDCODE | C4-NC5010-00025 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G4200_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0400_1 |
| CNSC - Coolant Entry Style Code | 4 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:18:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | N |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
| LOCAP - Location Aid Property | False |
