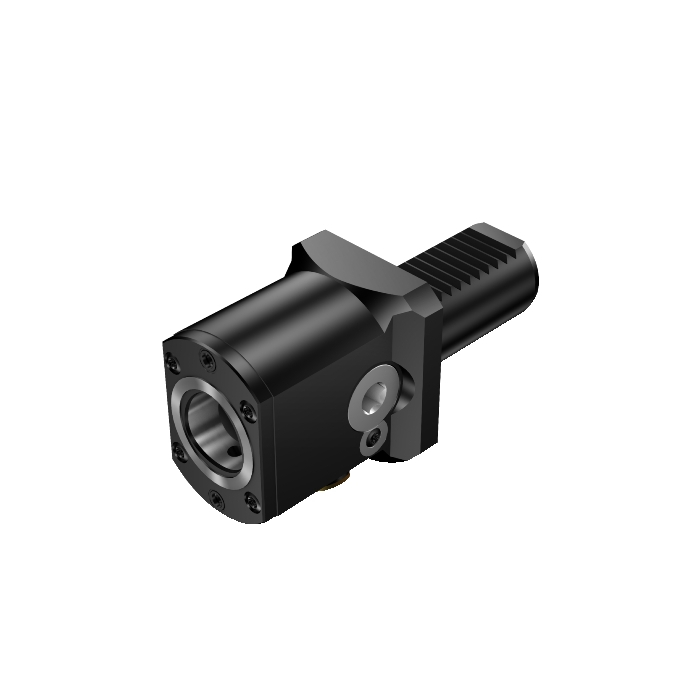

Sandvik Coromant C4-RC2050-00065M VDI to Coromant Capto™ clamping unit
R 23 259,90
inc. vat
In stock
SKU
5727736
VDI to Coromant Capto® clamping unit
Reliable nationwide shipping
Delivery in 4 - 5 days
VDI to Coromant Capto® clamping unit
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 28mm |
| DCON - Connection Diameter | 40mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 65mm |
| TQ - Torque | 50Nm |
| WT - Weight Of Item | 2.8kg |
| OAL - Overall Length | 78mm |
| OHX - Maximum Overhang | 65mm |
| BAWS - Workpiece Side Body Angle | 0deg |
| WF - Functional Width | 0mm |
| HF - Functional Height | 0mm |
| OAH - Overall Height | 83mm |
| OAW - Overall Width | 70mm |
| HRY - Lowest Point From Reference Plain | 49mm |
| ORDCODE | C4-RC2050-00065M |
| ADINTMS - Adaptive Interface Machine Direction | M_ZYV01A_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS02_C0400_1 |
| CNSC - Coolant Entry Style Code | 6 |
| CXSC - Coolant Exit Style Code | 2 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-04-01 14:18:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| Hand | R |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | False |
