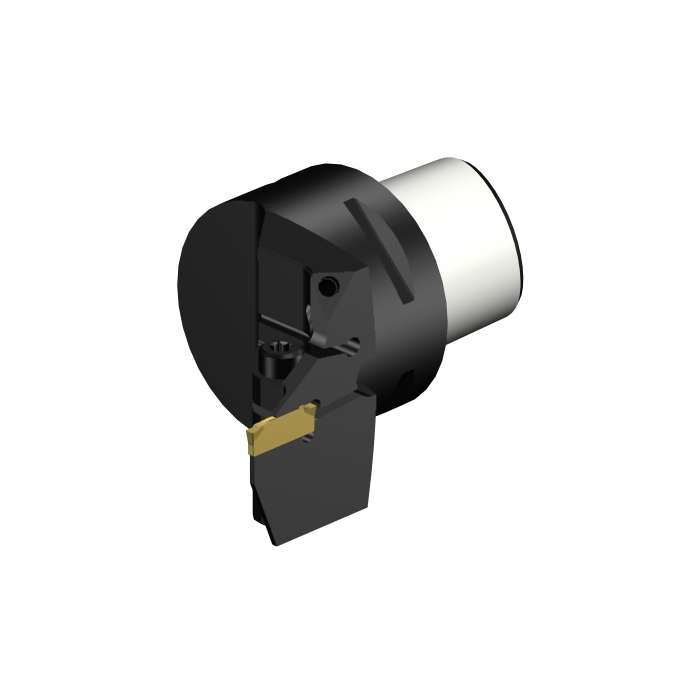

Sandvik Coromant C4-RF123E08-27050B CoroCut™ 1-2 cutting unit for parting & grooving
Next
Sandvik Coromant C3-RF123H13-22055B CoroCut™ 1-2 cutting unit for parting & grooving
Previous
![Sandvik Coromant C4-RF123E08-27050B CoroCut™ 1-2 cutting unit for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/53309f5b6/sandvik-coromant-c4-rf123e08-27050b-corocuttm-1-2-cutting-unit-for-parting-grooving.jpg)
![Sandvik Coromant C3-RF123H13-22055B CoroCut™ 1-2 cutting unit for parting & grooving](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/533074196/sandvik-coromant-c3-rf123h13-22055b-corocuttm-1-2-cutting-unit-for-parting-grooving.jpg)
R 4 895,55
inc. vat
In stock
SKU
5846668
CoroCut® 1-2 cutting unit for parting and grooving
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroCut® 1-2 cutting unit for parting and grooving
CP - Coolant Pressure | 4000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
TQ - Torque | 3Nm |
WT - Weight Of Item | 0.347kg |
OAL - Overall Length | 74mm |
OHX - Maximum Overhang | 50mm |
KAPR - Tool Cutting Edge Angle | 90deg |
BAWS - Workpiece Side Body Angle | 0deg |
WF - Functional Width | 27mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 4.1mm |
CW - Cutting Width | 1.5mm |
CDX - Cutting Depth Maximum | 8mm |
ORDCODE | C4-RF123D08-27050B |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0400_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 5 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:01:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | C |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_CCD2_2 |
Hand | R |
MIID - Master Insert Identification | N123D2-0150-0002-CM |
SSC - Insert Seat Size Code | D |
CICT - Cutting Item Count | 1 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
