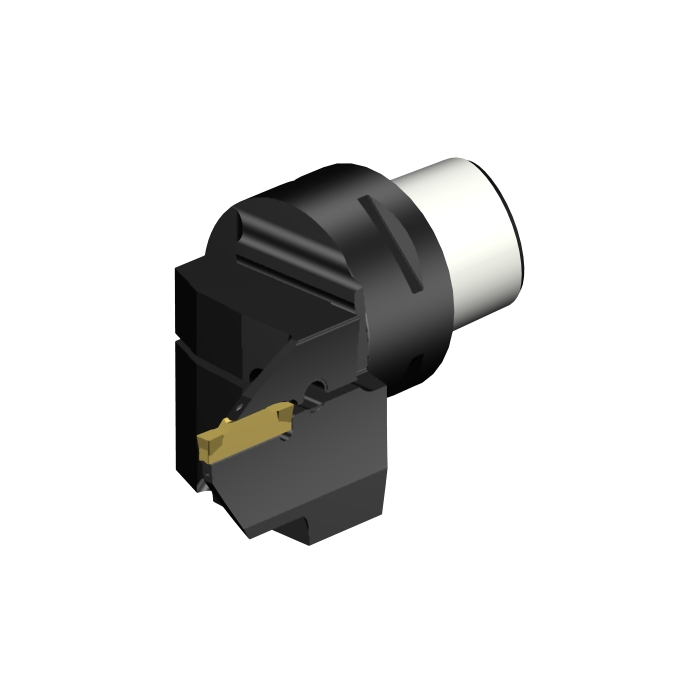

Sandvik Coromant C4-RF123G20CE-090B CoroCut™ 1-2 cutting unit for face grooving

Name: Sandvik Coromant C4-RF123G20CE-090B CoroCut™ 1-2 cutting unit for face grooving
SKU: 6798943
Price: 8886.05 ZAR
Availability: InStock

Be the first to review this product

R 8 886,05 inc. vat

In stock

SKU

6798943

CoroCut® 1-2 cutting unit for face grooving

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroCut® 1-2 cutting unit for face grooving

More Information

More Information
CP - Coolant Pressure	15000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	65mm
WT - Weight Of Item	424g
OAL - Overall Length	89mm
OHX - Maximum Overhang	65mm
KAPR - Tool Cutting Edge Angle	90deg
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	27mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
Insert Thickness	4.3321mm
CW - Cutting Width	3mm
CDX - Cutting Depth Maximum	20mm
DAXN - Minimum Axial Groove Outside Diameter	96mm
DAXX - Maximum Axial Groove Outside Diameter	160mm
ORDCODE	C4-RF123G20CE-090B
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0400_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 15:38:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_CCG2_7
Hand	R
MIID - Master Insert Identification	N123G2-0300-0003-TF
SSC - Insert Seat Size Code	G
CICT - Cutting Item Count	1
AXGSUP - Axial Groove Support Direction	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
