Sandvik Coromant C4-SRDCN-00050-08A CoroTurn™ 107 cutting unit for turning

Name: Sandvik Coromant C4-SRDCN-00050-08A CoroTurn™ 107 cutting unit for turning
SKU: 5728140
Price: 3958.30 ZAR
Availability: OutOfStock

Be the first to review this product

R 3 958,30 inc. vat

Out of stock

SKU

5728140

CoroTurn® 107 cutting unit for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 107 cutting unit for turning

More Information

More Information
CP - Coolant Pressure	4000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	50mm
TQ - Torque	1.4Nm
WT - Weight Of Item	0.294kg
OAL - Overall Length	74mm
OHX - Maximum Overhang	50mm
RMPX - Maximum Ramping Angle	90deg
DMIN - Minimum Bore Diameter	140mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	4mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
IC - Inscribed Circle Diameter	8mm
RE - Corner Radius	4mm
Insert Thickness	3.175mm
LU - Usable Length	16mm
ORDCODE	C4-SRDCN-00050-08A
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0400_1
CNSC - Coolant Entry Style Code	2
CXSC - Coolant Exit Style Code	6
BMC - Body Material Code	1
CHANGEDATE	2022-08-15 14:40:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WISO_RC0803M_1
Hand	N

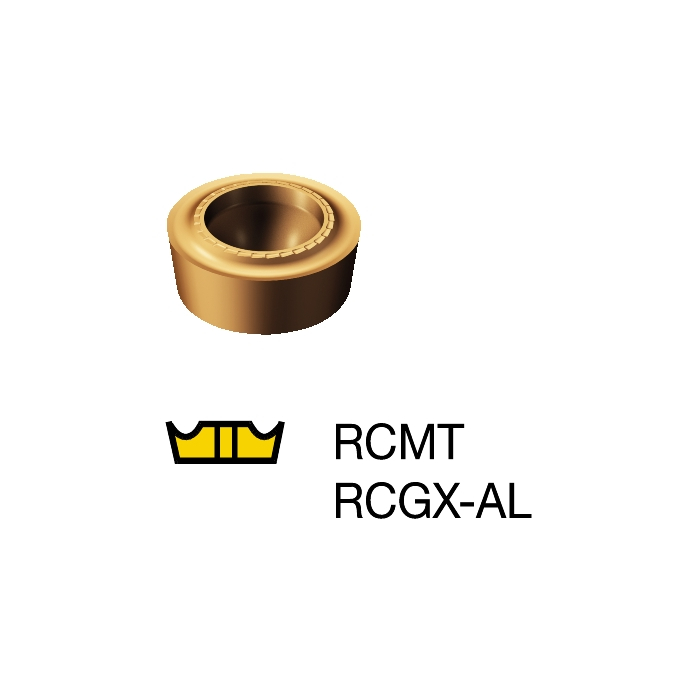

MIID - Master Insert Identification	RCMT 08 03 M0
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	08
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
