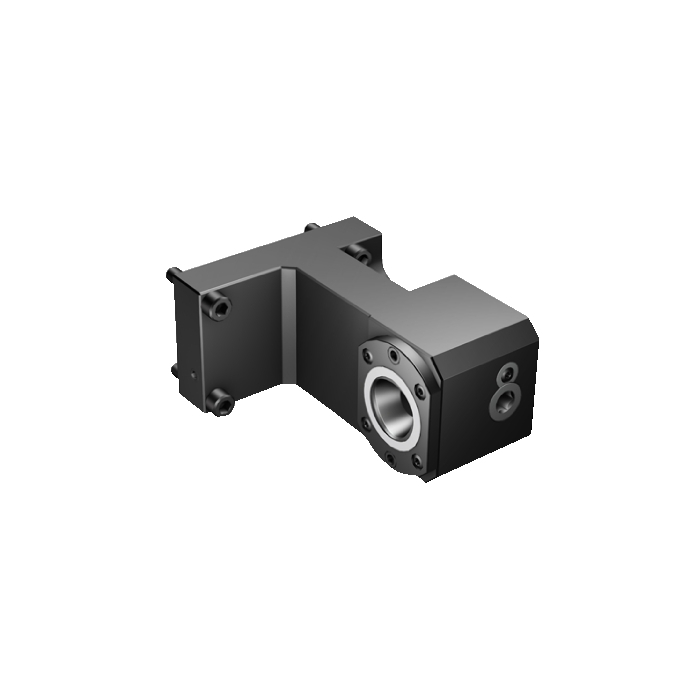

Sandvik Coromant C4-TRI-BT65A-SS Manual clamping unit for BMT turrets

Name: Sandvik Coromant C4-TRI-BT65A-SS Manual clamping unit for BMT turrets
SKU: 6144262
Price: 26903.10 ZAR
Availability: OutOfStock

R 26 903,10 inc. vat

Out of stock

SKU

6144262

Manual clamping unit for BMT turrets

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Manual clamping unit for BMT turrets

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	100mm
TQ - Torque	40Nm
WT - Weight Of Item	6124.7g
OAL - Overall Length	134mm
OHX - Maximum Overhang	100mm
BAWS - Workpiece Side Body Angle	90deg
WF - Functional Width	20mm
HF - Functional Height	0mm
LPR - Protruding Length	124mm
OAH - Overall Height	92mm
OAW - Overall Width	98.5mm
ORDCODE	C4-TRI-BT65A-SS
ADINTMS - Adaptive Interface Machine Direction	M_FLC02BN_C065N_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0400_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:21:00.000
STDNO - Standard Number	ISO26623-2
Hand	R
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
