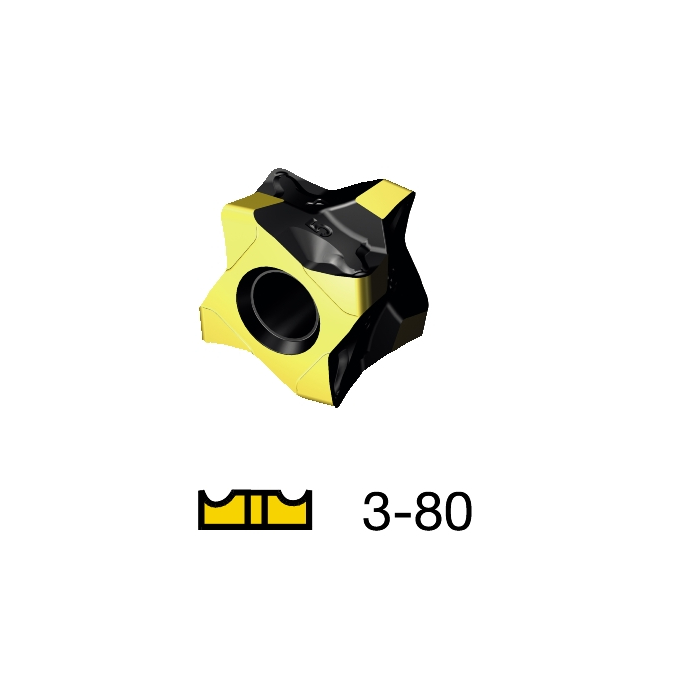

Sandvik Coromant C5-3-80-LL35060-10C CoroTurn™ 300 cutting unit for turning

Name: Sandvik Coromant C5-3-80-LL35060-10C CoroTurn™ 300 cutting unit for turning
SKU: 6814421
Price: 6606.75 ZAR
Availability: InStock

Be the first to review this product

R 6 606,75 inc. vat

In stock

SKU

6814421

CoroTurn® 300 cutting unit for turning

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroTurn® 300 cutting unit for turning

More Information

More Information
CP - Coolant Pressure	15000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	60mm
TQ - Torque	4.5Nm
WT - Weight Of Item	744g
OAL - Overall Length	90mm
OHX - Maximum Overhang	60mm
KAPR - Tool Cutting Edge Angle	94.7deg
RMPX - Maximum Ramping Angle	0deg
DMIN - Minimum Bore Diameter	170mm
BAWS - Workpiece Side Body Angle	0deg
BAMS - Machine Side Body Angle	0deg
WF - Functional Width	35mm
HF - Functional Height	0mm
GAMO - Orthogonal Rake Angle	-5.5deg
LAMS - Inclination Angle	-6.466deg
AN - Clearance Angle Major	0deg
RE - Corner Radius	0.79375mm
Insert Thickness	11mm
W1 - Insert Width	10mm
ORDCODE	C5-3-80-LL35060-10C
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0500_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	8
BMC - Body Material Code	1
CHANGEDATE	2022-09-22 19:00:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	P
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_TJ1011_1
Hand	L
MIID - Master Insert Identification	3-80-101108
IFS - Insert Mounting Style Code	2
SSC - Insert Seat Size Code	10
CICT - Cutting Item Count	1
DPC - Damping Property	False
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
