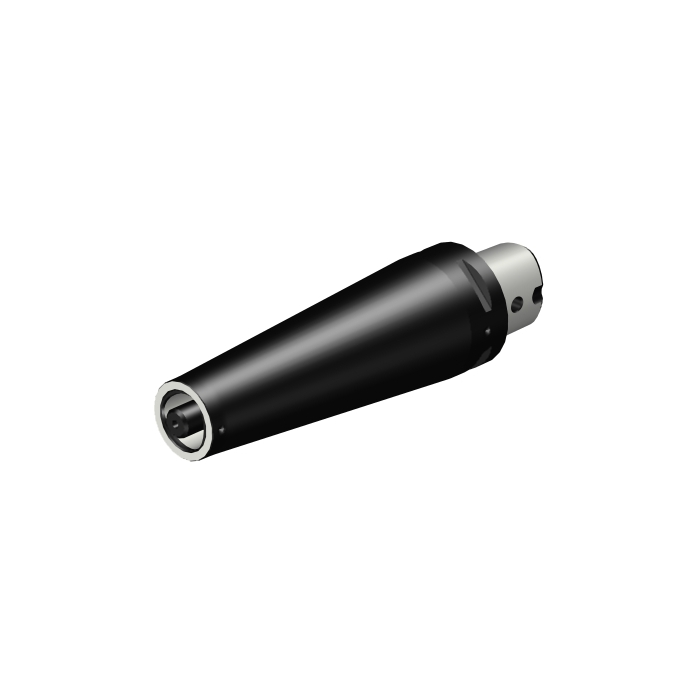

Sandvik Coromant C5-391.02-32 150 Coromant Capto™ reduction adaptor
R 6 753,95
inc. vat
Out of stock
SKU
6763467
Coromant Capto® reduction adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® reduction adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 150mm |
| BD - Body Diameter | 50mm |
| LB - Body Length | 150mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 45Nm |
| WT - Weight Of Item | 1.59kg |
| OAL - Overall Length | 180mm |
| OHX - Maximum Overhang | 150mm |
| ORDCODE | C5-391.02-32 150 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CCS03_C0320_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-20 05:20:00.000 |
| STDNO - Standard Number | ISO26623-2 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
