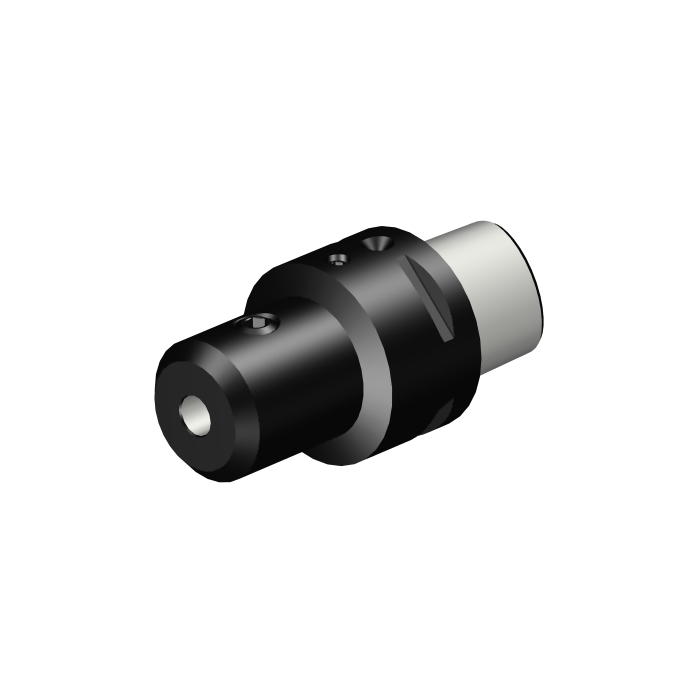

Sandvik Coromant C5-391.21-10 070 Coromant Capto™ to Whistle Notch adaptor
R 7 431,30
inc. vat
Out of stock
SKU
5729928
Coromant Capto® to Whistle Notch adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to Whistle Notch adaptor
| CP - Coolant Pressure | 2000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 10mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 70mm |
| BD - Body Diameter | 50mm |
| LB - Body Length | 70mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 10Nm |
| WT - Weight Of Item | 832g |
| OAL - Overall Length | 100mm |
| OHX - Maximum Overhang | 70mm |
| ORDCODE | C5-391.21-10 070 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLWN_G1000_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-23 23:10:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
