R 6 496,35
inc. vat
Out of stock
SKU
5728799

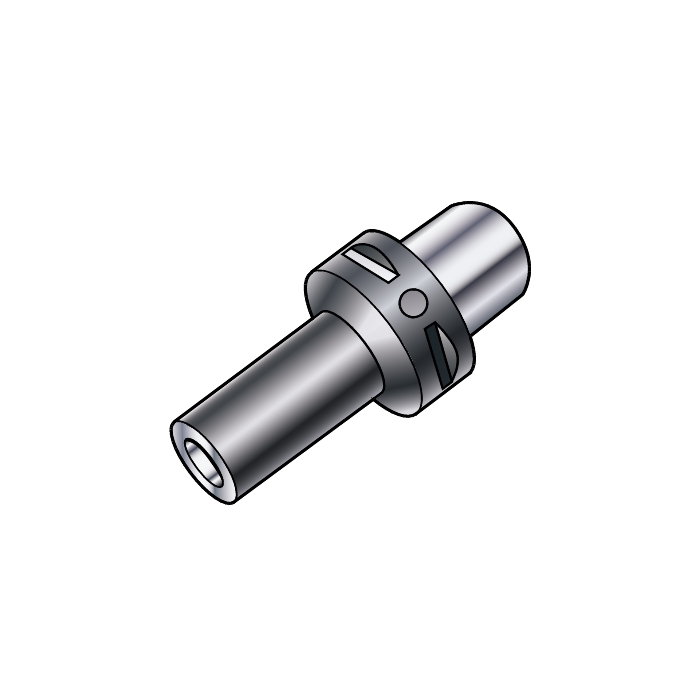

Coromant Capto® to MSSC adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to MSSC adaptor
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 70mm |
BD - Body Diameter | 50mm |
LB - Body Length | 70mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 10Nm |
WT - Weight Of Item | 0.526kg |
OAL - Overall Length | 100mm |
OHX - Maximum Overhang | 70mm |
ORDCODE | C5-391.T-08 070 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_SAC03_A0080_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-20 22:56:00.000 |
STDNO - Standard Number | ISO26623-1 |
TDZ - Thread Diameter Size | M 8 |
DPC - Damping Property | False |
BBD - Balanced By Design | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
