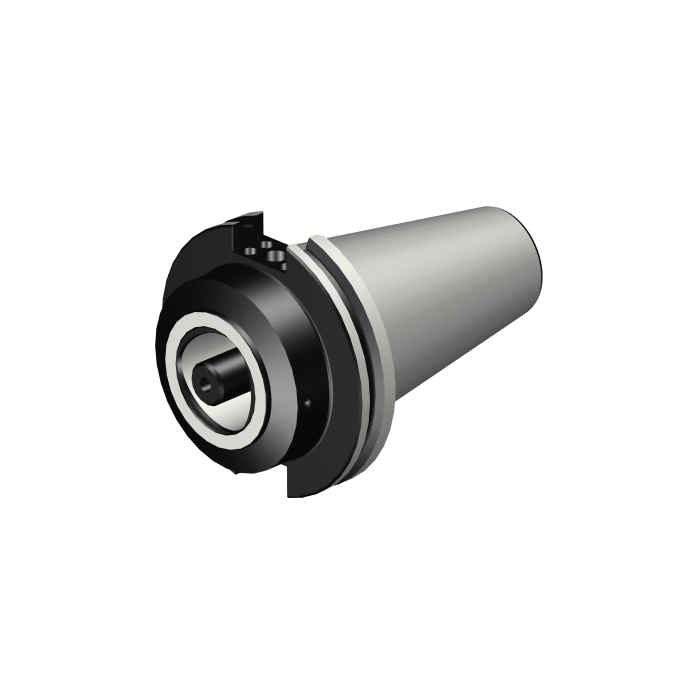

Sandvik Coromant C5-A390.545-50 040A BIG-PLUS CAT-V to Coromant Capto™ adaptor

R 9 787,65 inc. vat
In stock
SKU
5728845
BIG-PLUS CAT-V to Coromant Capto® adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
BIG-PLUS CAT-V to Coromant Capto® adaptor
More Information
CP - Coolant Pressure 8000000Pa
DFC - Functional Diameter 35mm
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 40mm
BD - Body Diameter 98.4mm
LB - Body Length 40mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 95Nm
WT - Weight Of Item 3kg
OAL - Overall Length 141.8mm
OHX - Maximum Overhang 40mm
ORDCODE C5-A390.545-50 040A
ADINTMS - Adaptive Interface Machine Direction M_SKG37BP_C0500_1
ADINTWS - Adaptive Interface Workpiece Direction W_CCS03_C0500_1
CNSC - Coolant Entry Style Code 7
CXSC - Coolant Exit Style Code 1
CRKS - Connection Retention Knob Thread Size 1"-8
BMC - Body Material Code 1
CHANGEDATE 2022-01-20 05:10:00.000
STDLET - Standard Letter AD/B
STDNO - Standard Number ISO26623-2
DPC - Damping Property False
DCP - Data Chip Provision False
BBD - Balanced By Design False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
