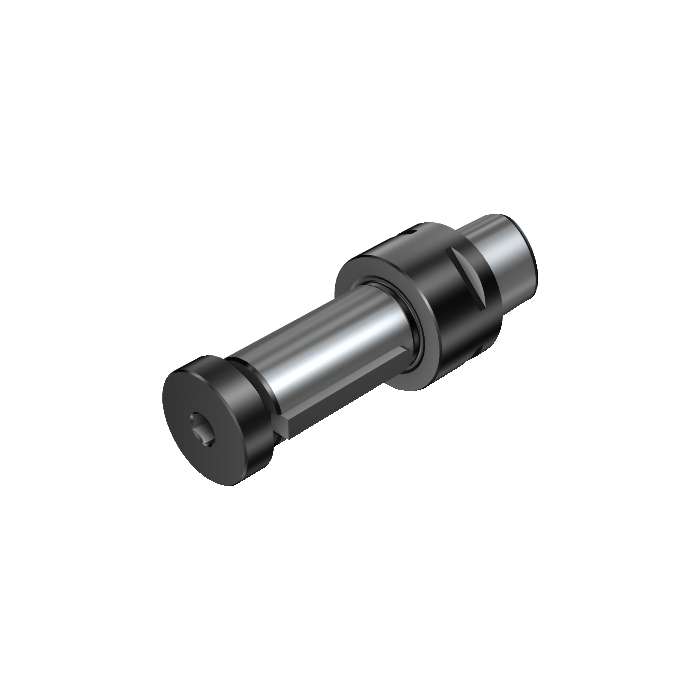

Sandvik Coromant C5-A391.10-31 025 Coromant Capto™ to side and face mill arbor adaptor
R 5 124,40
inc. vat
In stock
SKU
5728830
Coromant Capto® to side and face mill arbor adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to side and face mill arbor adaptor
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 31.75mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 24.9936mm |
| BD - Body Diameter | 50mm |
| LB - Body Length | 25mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 120Nm |
| RPMX - Rotational Speed Maximum | 60001/min |
| WT - Weight Of Item | 0.991kg |
| OAL - Overall Length | 54.9936mm |
| OHX - Maximum Overhang | 24.9936mm |
| LSC - Clamping Length | 60mm |
| ORDCODE | C5-A391.10-31 025 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_FDA21_S1250_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2021-12-20 22:49:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
