R 5 649,95
inc. vat
In stock
SKU
5728839

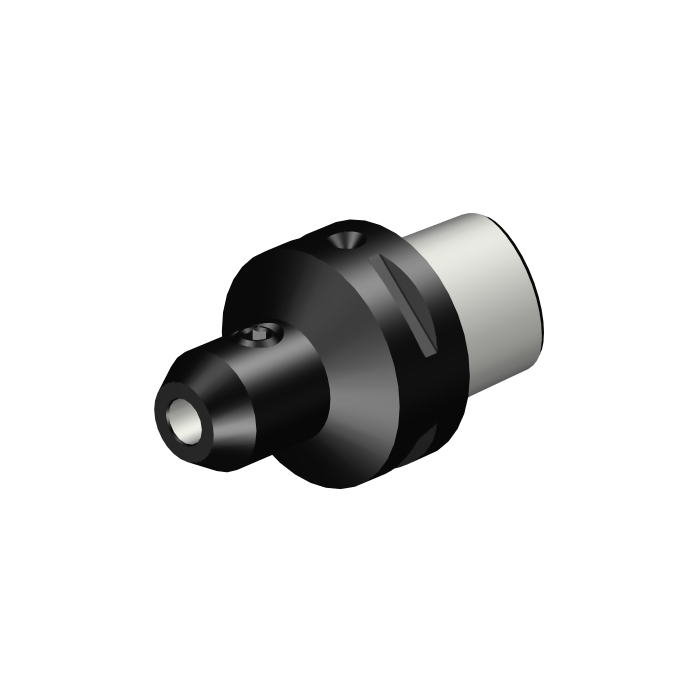

Coromant Capto® to Weldon adaptor
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to Weldon adaptor
CP - Coolant Pressure | 2000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 9.525mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 54.991mm |
BD - Body Diameter | 50mm |
LB - Body Length | 55mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 8Nm |
RPMX - Rotational Speed Maximum | 280001/min |
WT - Weight Of Item | 554g |
OAL - Overall Length | 84.991mm |
OHX - Maximum Overhang | 54.991mm |
LSC - Clamping Length | 43mm |
ORDCODE | C5-A391.20-09 055 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLW_R3750_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-20 07:19:00.000 |
STDNO - Standard Number | ISO26623-1 |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
