R 6 606,75
inc. vat
In stock
SKU
7100713
CoroTurn® Prime cutting unit for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® Prime cutting unit for turning
CP - Coolant Pressure | 15000000Pa |
---|---|
DFC - Functional Diameter | 35mm |
DCON - Connection Diameter | 50mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 60mm |
TQ - Torque | 4Nm |
WT - Weight Of Item | 0.662kg |
OAL - Overall Length | 90mm |
OHX - Maximum Overhang | 60mm |
KAPR - Tool Cutting Edge Angle | 30deg |
RMPX - Maximum Ramping Angle | 15deg |
DMIN - Minimum Bore Diameter | 165mm |
BAWS - Workpiece Side Body Angle | 0deg |
BAMS - Machine Side Body Angle | 0deg |
WF - Functional Width | 35mm |
HF - Functional Height | 0mm |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 11mm |
RE - Corner Radius | 0.79375mm |
Insert Thickness | 6mm |
APMX - Depth Of Cut Maximum | 1.5mm |
ORDCODE | C5-CP-30AL-35060-11C |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-09-13 15:37:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_TKA11_1 |
Hand | L |
MIID - Master Insert Identification | CP-A1108 |
IFS - Insert Mounting Style Code | 3 |

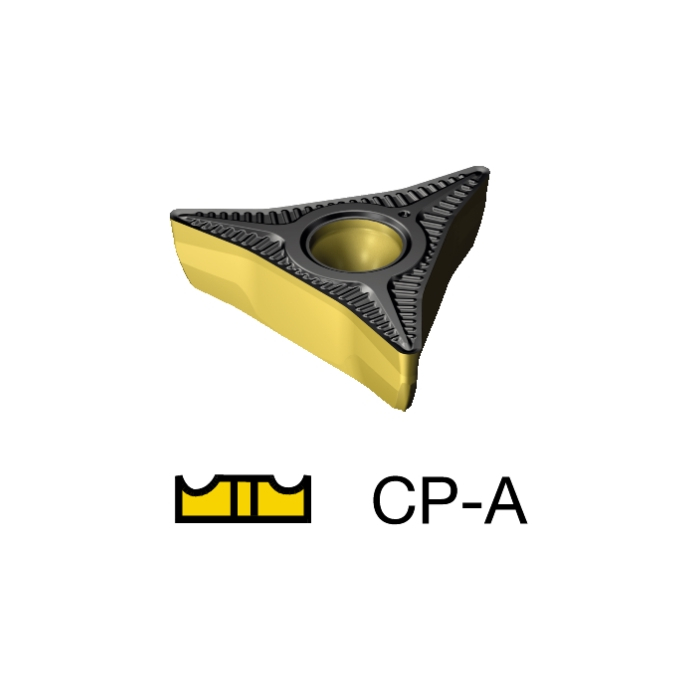

SSC - Insert Seat Size Code | CP-A |
CICT - Cutting Item Count | 1 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | False |
