Sandvik Coromant C5-DDJNR-35060-15 T-Max™ P cutting unit for turning Previous Sandvik Coromant C5-DDJNR-35060-15 T-Max™ P cutting unit for turning

Sandvik Coromant C5-DDJNR-35060-15-2 T-Max™ cutting unit for turning

R 5 463,65 inc. vat
Out of stock
SKU
5728428
T-Max® cutting unit for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® cutting unit for turning
More Information
CP - Coolant Pressure 4000000Pa
DFC - Functional Diameter 35mm
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 60mm
TQ - Torque 3.9Nm
WT - Weight Of Item 636g
OAL - Overall Length 90mm
OHX - Maximum Overhang 60mm
KAPR - Tool Cutting Edge Angle 93deg
RMPX - Maximum Ramping Angle 27deg
DMIN - Minimum Bore Diameter 165mm
BAWS - Workpiece Side Body Angle 0deg
BAMS - Machine Side Body Angle 0deg
WF - Functional Width 35mm
HF - Functional Height 0mm
GAMO - Orthogonal Rake Angle -6deg
LAMS - Inclination Angle -7deg
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 0.79375mm
Insert Thickness 7.9375mm
ORDCODE C5-DDJNR-35060-15-2
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0500_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-07-05 15:23:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code D
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_DN1507_3
Hand R

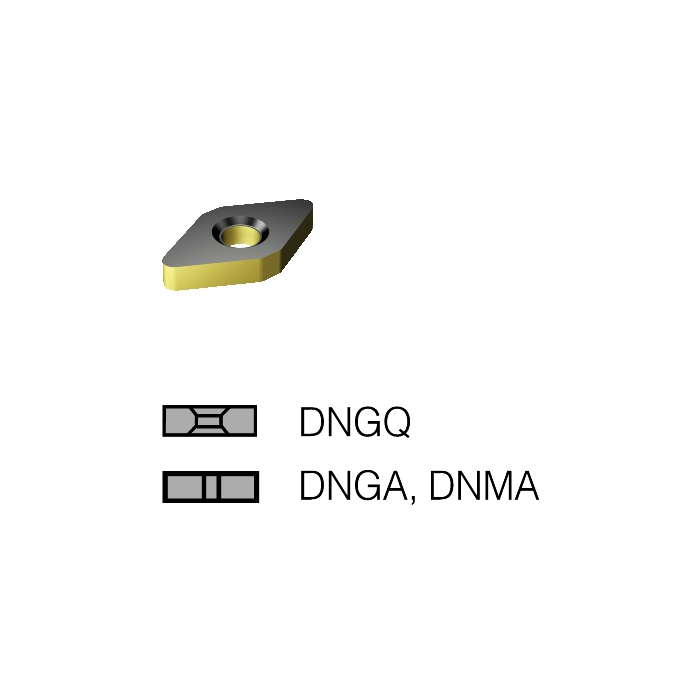

MIID - Master Insert Identification DNGQ 15 07 08
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code D
SSC - Insert Seat Size Code 15
CICT - Cutting Item Count 1
DPC - Damping Property False
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality False
