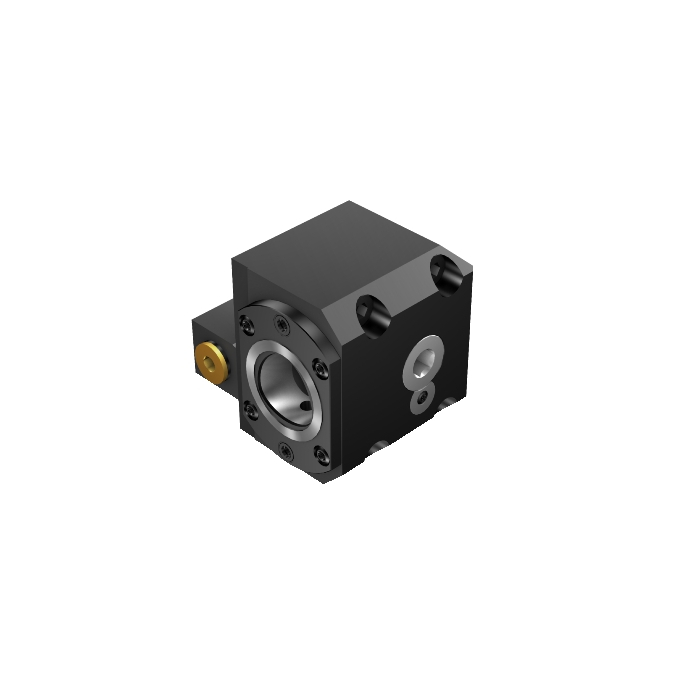

Sandvik Coromant C5-LC2080-77110A Rectangular shank to Coromant Capto™ clamping unit

Name: Sandvik Coromant C5-LC2080-77110A Rectangular shank to Coromant Capto™ clamping unit
SKU: 5728253
Price: 23179.40 ZAR
Availability: InStock

Be the first to review this product

R 23 179,40 inc. vat

In stock

SKU

5728253

Rectangular shank to Coromant Capto® clamping unit

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

Rectangular shank to Coromant Capto® clamping unit

More Information

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	35mm
DCON - Connection Diameter	50mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	110mm
TQ - Torque	70Nm
WT - Weight Of Item	5.1kg
OAL - Overall Length	110.5mm
OHX - Maximum Overhang	8.5mm
BAWS - Workpiece Side Body Angle	0deg
WF - Functional Width	77mm
HF - Functional Height	32mm
H - Shank Height	32mm
B - Shank Width	33.5mm
OAH - Overall Height	92mm
OAW - Overall Width	109mm
HRY - Lowest Point From Reference Plain	14mm
ORDCODE	C5-LC2080-77110A
ADINTMS - Adaptive Interface Machine Direction	M_VKT01_A3233_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CCS02_C0500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-04-01 14:19:00.000
STDNO - Standard Number	ISO26623-2
Hand	L
CNT - Coolant Entry Thread Size	G 1/4-19
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	False
